40W Led Flood Lamp

40W Led Flood Lamp

high efficiency high lumens 40W 120lm/w led flood lamp Features: 1. LUMILEDS LUXEON® 3030 leds; MEANWELL ® HLG driver. 2. Five years warranty. 3. 100, 000 hours life span. 4. IP66&IK10 . 5. Have CE, RoHS, GS, CB, UL, DLC, SAA approved. 6. 60 degree, 90 degree, 110 degree beam angle. 7. High...

Send InquiryChat Now

Product Details

high efficiency high lumens 40W 120lm/w led flood lamp



Features:

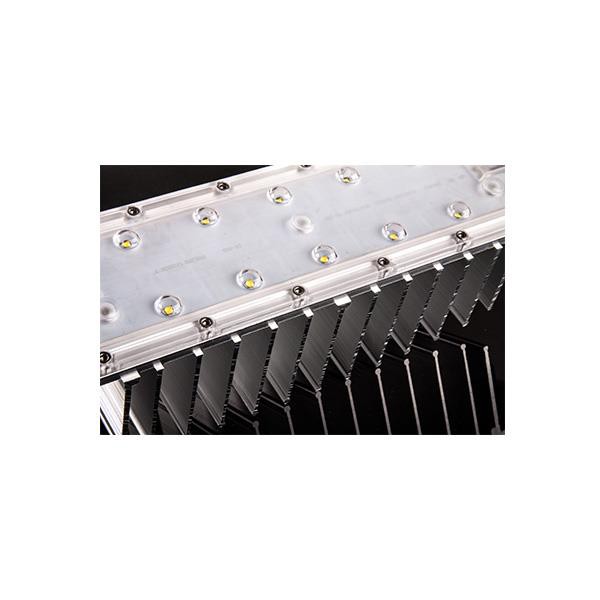

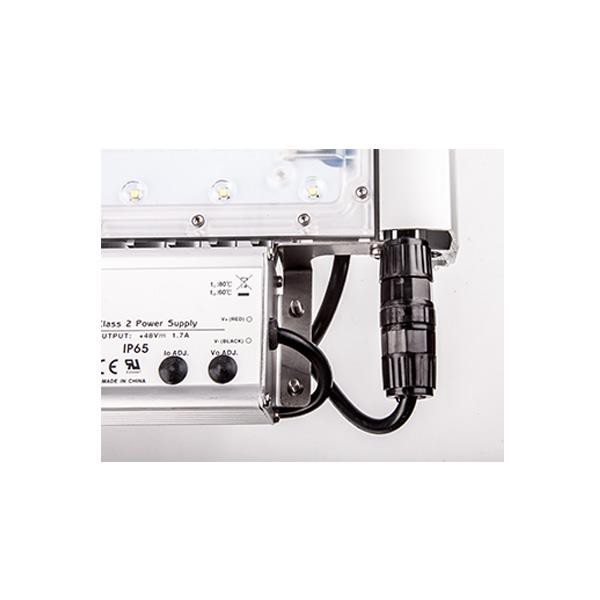

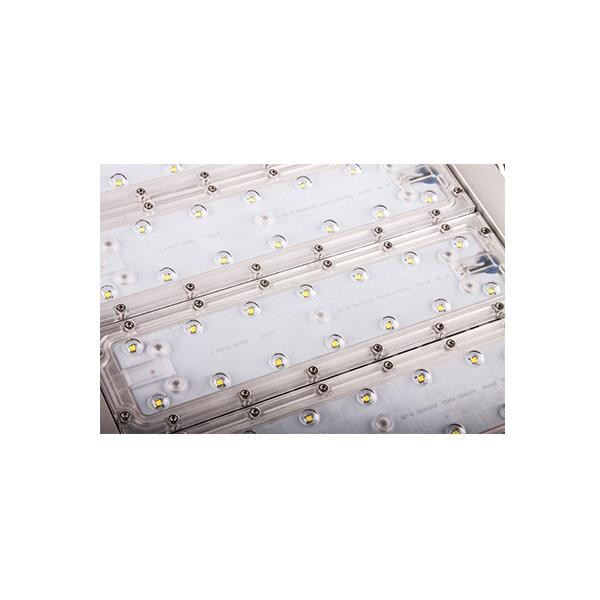

1. LUMILEDS LUXEON® 3030 leds; MEANWELL® HLG driver.

2. Five years warranty.

3. 100, 000 hours life span.

4. IP66&IK10.

5. Have CE, RoHS, GS, CB,UL, DLC, SAA approved.

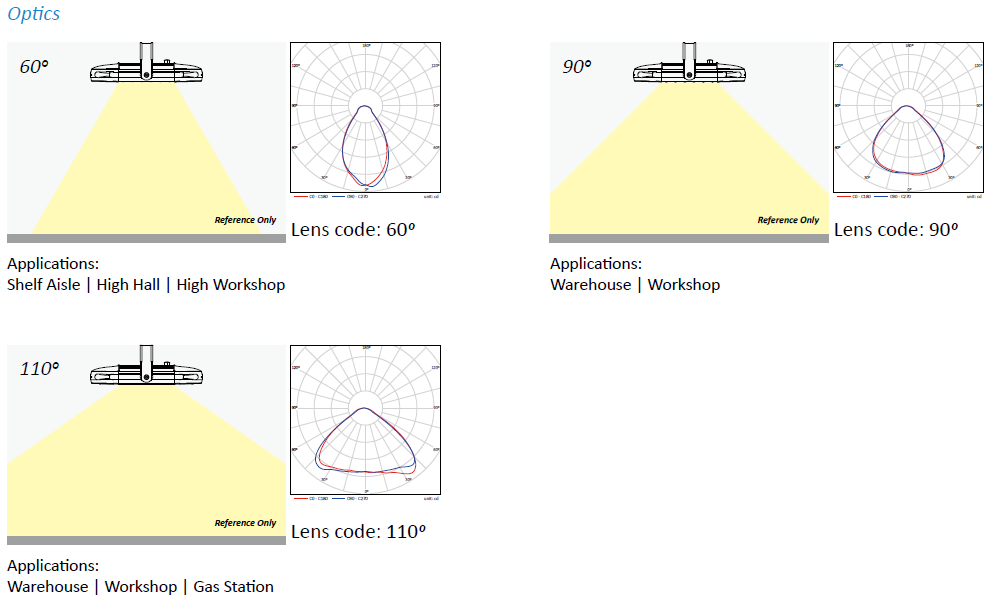

6. 60 degree, 90 degree, 110 degree beam angle.

7. High luminous efficiency: 120LM/W.



Specifications
ModelZGSM-FGD40H4
LED BrandLUMILEDS 3030
Driver BrandMeanwell HLG series
Norminal Wattage40W
LED Module Quantity1 module
Input Voltage100-240/277VAC/DC12/24V
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency>120lm/w
Lamp Rated Lumen output4800 lm (Lumen tolerance +/- 5%)
Color Rendering IndexRa>70
Color Temperature3000 4000 5000 or 5700K
Photometric Type60,90,110 degrees
Optimal Operating Temperature25℃
Storage Temperatures‘-40℃~+70℃
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100000 hours -L70, @25 ºC (77 ºF)

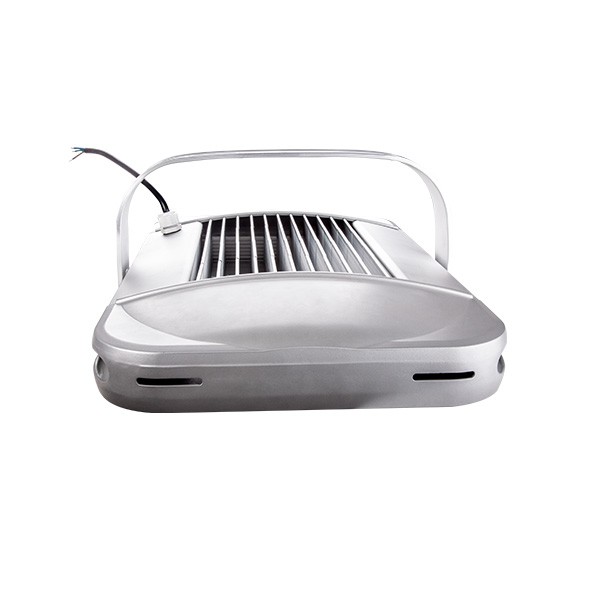

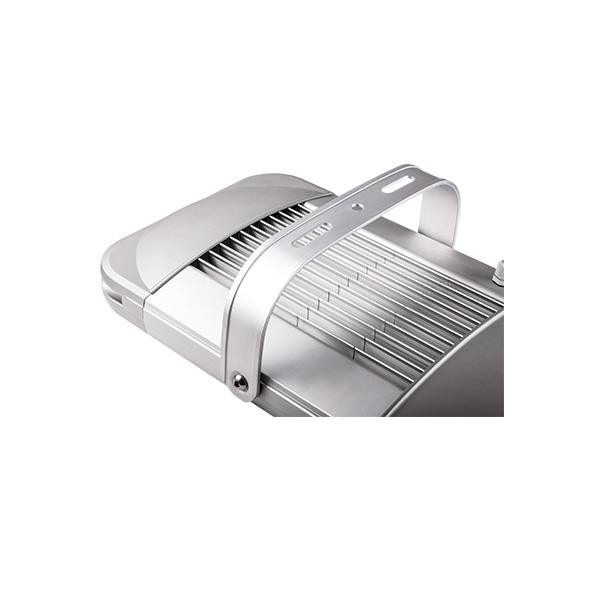

Body and Shell MaterialsAnodized Aluminum
IP RatingIP66 with test report
IK RatingIK10 with test report
CertificationCE,ROHS,GS,CB,UL,cUL,DLC,LM-79,SAA
Optional Function1-10V DC or PWM Signal or Resistance Dimming
Timer/Photocell Control
Warranty5 years

Packing Details
Fixture Dimension293 x340 x156 mm
Fixture Weight3.1 kg / 6.8 lbs
Packing Dimension345 x365 x160 mm
Packing Weight3.9 kg /8.6 lbs




Products Catalog

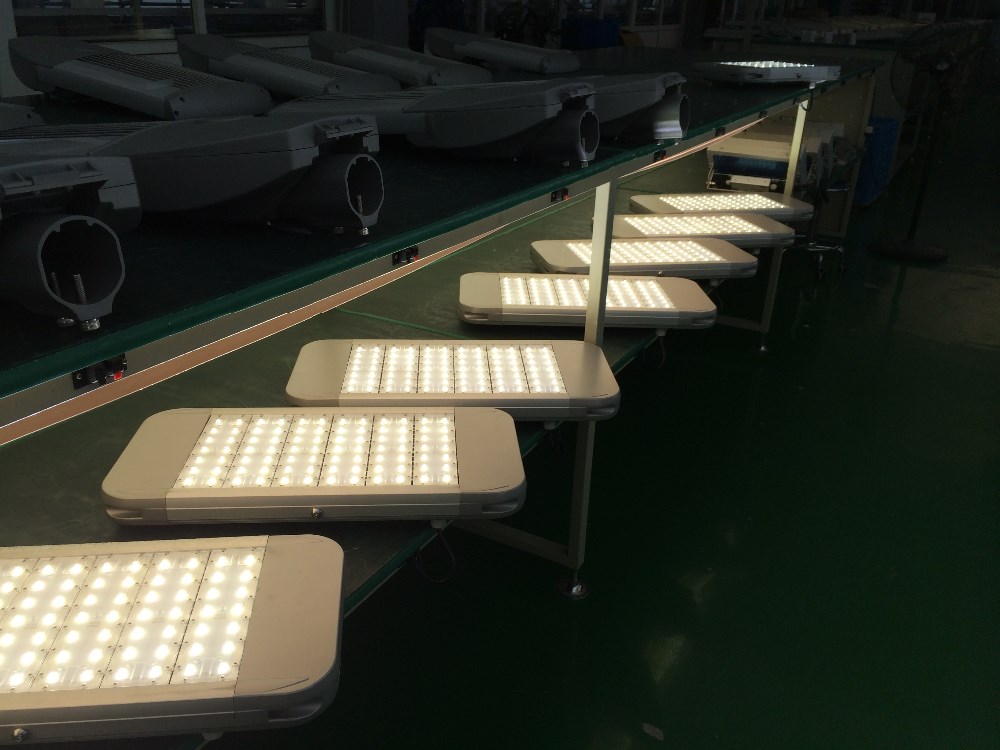

 high bay 5700K.jpgIMG_6052.JPGIMG_6054.JPG

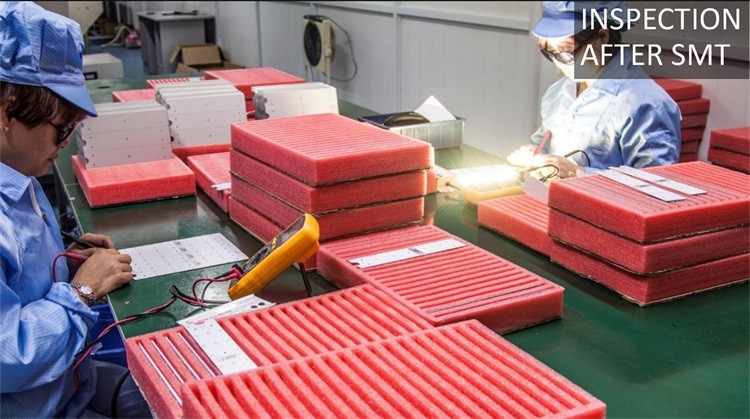

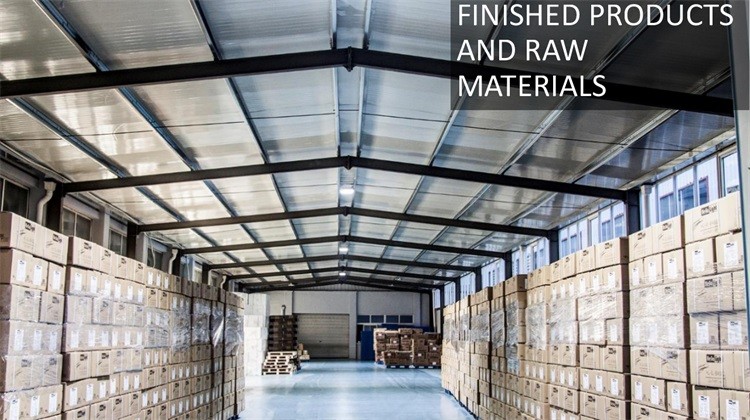

QQ20160409153609QQ20160409153710QQ20160409153740QQ20160409153922QQ20160409153947QQ20160409153819
