200W LED Floodlight Flood Lighting

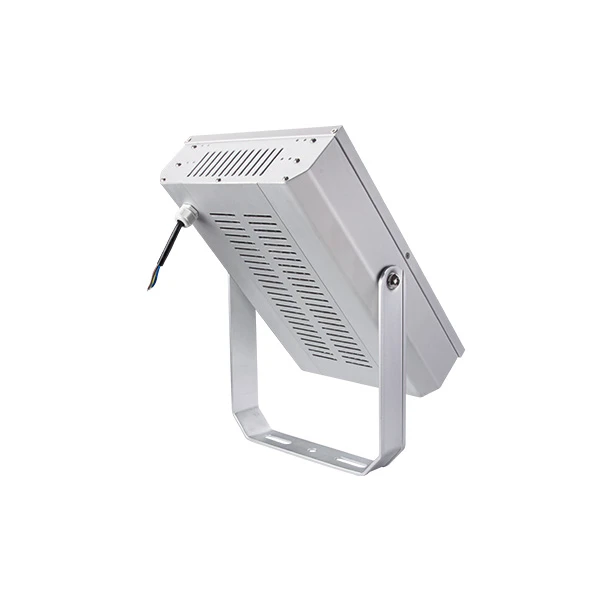

OUTDOOR 240W IP66 FLOODLIGHT Series H5B LED Flood Light Model: ZGSM-FGD240H5B Application: Warehouse | Workshop | Garage | Billboard | Area | Building

Send InquiryChat Now

Product Details

KEY FEATURES

1. Wide power range: 40W~360W.

2. Special circuit design, single LED’s damage won't affect others' normal work.

3. Modular design for easy installation, replacement and maintenance.

4.High Lumen output up to 165lm/ w with high quality LED chips.

5. Various applications with different mounting Accessories.

6. Multiple lighting control options are available, e.g. DALI, 1-10V, motion sensor.

7. Designed to last at least 100, 000 hours at L70.

8. Multiple lighting distributions are available.


SPECIFICATIONS


ModelZGSM-FGD240H5B
LED BrandLumileds LUXEON 3030/5050
Driver BrandMeanwell HLG series
Norminal Wattage240W
LED Module Quantity5 modules
Input Voltage100-240/277/347/480VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency130-160 lm/w
Lamp Rated Lumen output31200-38400 lm (Lumen tolerance +/- 5%)
Color Rendering Index70 (80 is optional)
Color Temperature3000K, 4000K, 5000K or 5700K
Photometric Type60,90,110 degrees
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
BodyStretching Aluminum
CoverPC lens
RatingIP66 IK10
Protection Class I ( Class II optional)
CertificationCE,ROHS,LM80
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsMotion sensor or Smart control
Color OptionsSilver
Warranty7 years


PACKING DETAILS


Fixture Dimension458 x270 x336 mm
Fixture Weight6.3 kg /13.9 lbs
Packing Dimension580x370 x200mm
Packing Weight7.2kg /15.9 lbs


APPLICATIONS
