Motion Sensor Led High Bay Light

Motion Sensor Led High Bay Light

Motion sensor new 50W linear led high bay light

Send InquiryChat Now

Product Details

Motion sensor new 50W linear led high bay light

Specifications
ModelZGSM-GCD50H5B
LED Brand LUMILEDS® LUXEON 3030
Driver BrandMeanwell HLG series
Norminal Wattage50W
LED Module Quantity1 module
Input Voltage100-240/277VAC/DC12/24V
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency>125lm/w
Lamp Rated Lumen output6250 lm (Lumen tolerance +/- 5%)
Color Rendering IndexRa>70
Color Temperature3000,4000 5000 or 5700K

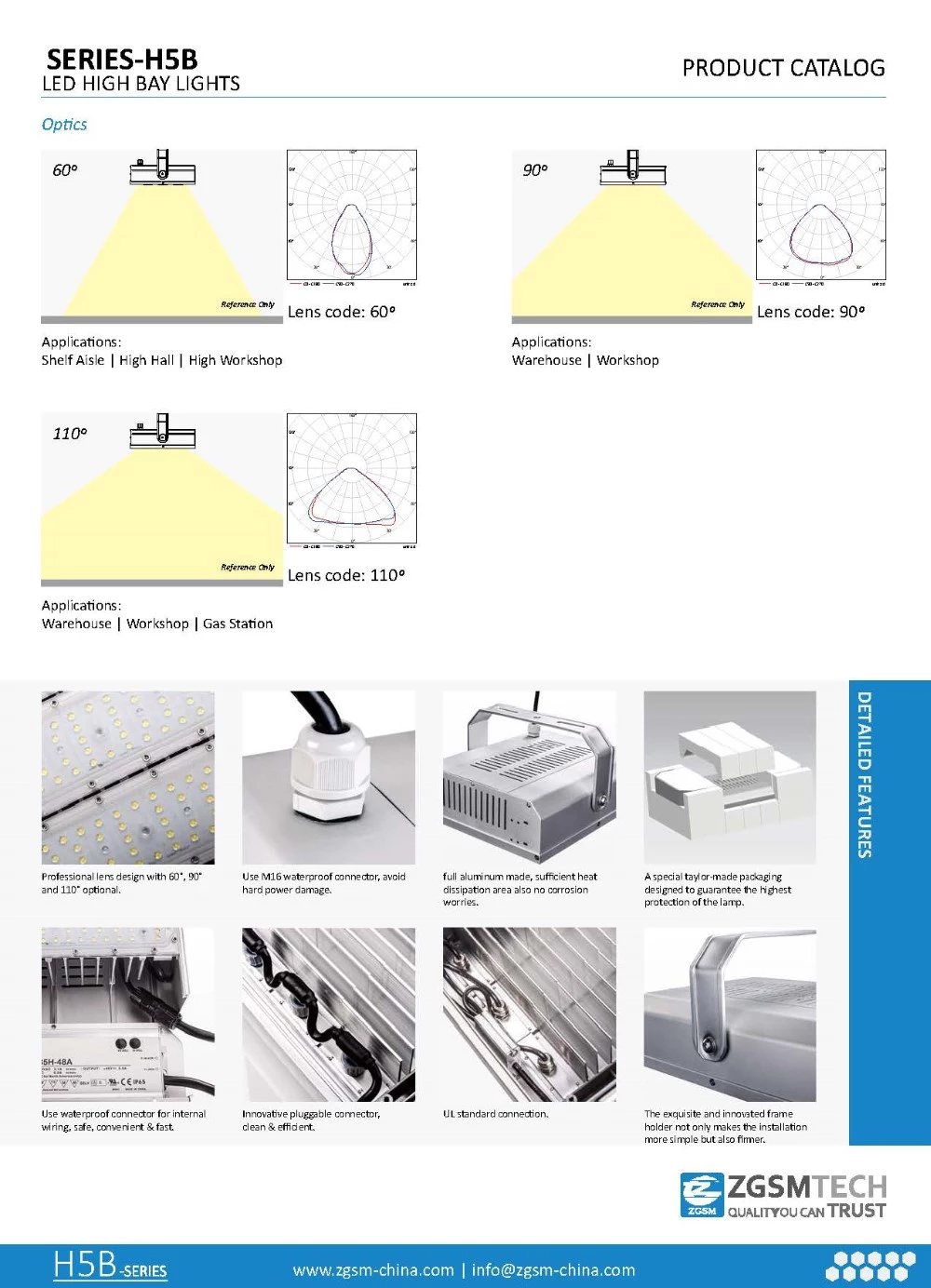

Photometric Type60,90,110 degrees
Optimal Operating Temperature25℃
Storage Temperatures‘-40℃~+70℃
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 75000 hours -L70, @25 ºC (77 ºF)
Body and Shell MaterialsAnodized Aluminum
IP RatingIP66 with test report
IK RatingIK10 with test report
CertificationCE,ROHS,GS,CB,ISO9001,ISO14001
Optional Function1-10V DC or PWM Signal or Resistance Dimming
Timer/Photocell Control
Warranty7 years

Packing Details
Fixture Dimension166 x270 x190mm
Fixture Weight2.4kg / 5.3 lbs
Packing Dimension285 x370 x200 mm
Packing Weight3.0 kg /6.6 lbs
