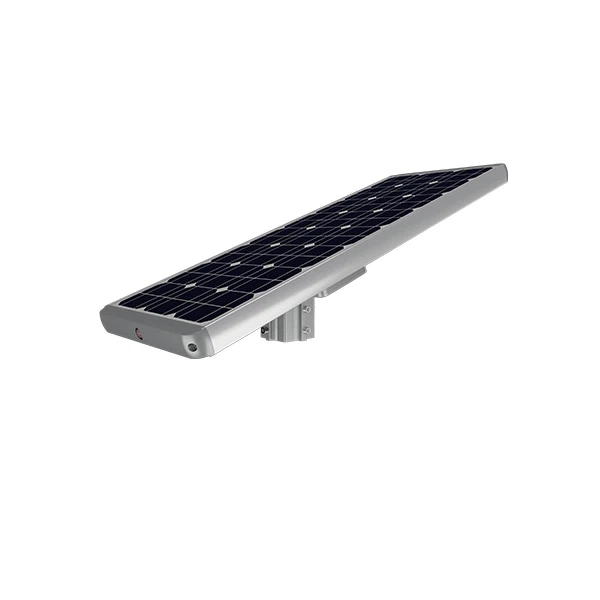

Integrated Solar Street Light 10W Outdoor LED Lighting

LITHIUM BATTERY 10W SOLAR POWERED LED LIGHTS Series PV2 All in One Solar Street Light Model: ZGSM-PV501010 Application: Street | Road | Highway | Parking lot | Path | Garden

Send InquiryChat Now

Product Details

KEY FEATURES

1. Wide power range: 10W~60W.

2. Special circuit design, single LED’s damage won't affect others' normal work.

3. High Lumen output up to 145lm/ w with high quality LED chips.

4. Lithium batteryimproves the reliability of the luminaire.

5. Monocrystalline silicon solar panels, greatly improving solar energy conversion efficiency.

6. Smart MPPT controller realizes intelligent control of lamps.

7. Multiple lighting control options are available, e.g. motion sensor, PIR sensor.


SPECIFICATIONS

ModelZGSM-PV501010
LED Number30units
Nominal Power10W
Battery Spec.10AH/11.1V
Solar Panel Spec.Monocrystal 50W /18V
LED BrandPhilips Lumileds 3030 2D
Luminous Flux1450lm
Light type1S
CCT3000K.4000K.5000K.5700K
Charge time<2.5 Hours (Low battery voltage)
Worktime at Energy
-saving Model(30%)
more than 29 hours
Discharge Temperature-20℃~+60℃
Charge temperature<60℃
Light control voltage5-11V
mounting height3-4m
space between light9~14m
Pole Diamerter FixtureRound pole: Φ60~85mm; Square pole : 60 x60 ~77 x77mm
RatingIP65 IK10
Induction TypeHuman infrared induction or microwave induction function
CertificationCE,ROHS,LM80
warranty period3 years


PACKING DETAILS

Fixture Dimension860x426x229 mm
Fixture Weight11.9kg
Packing Dimension915x485x140mm
Packing Weight13.8kg


APPLICATIONS
