INTELLIGENT INDUCTION 30W ALL IN ONE SOLAR PARKING LOT LIGHT Series PV2 All in One Solar Street Light Model: ZGSM-PV703020 Application: Street | Road | Highway | Parking lot | Path | Garden

Send InquiryChat Now

Product Details

KEY FEATURES

1. Wide power range: 10W~60W.

2. Special circuit design, single LED’s damage won't affect others' normal work.

3. High Lumen output up to 145lm/ w with high quality LED chips.

4. Lithium batteryimproves the reliability of the luminaire.

5. Monocrystalline silicon solar panels, greatly improving solar energy conversion efficiency.

6. Smart MPPT controller realizes intelligent control of lamps.

7. Multiple lighting control options are available, e.g. motion sensor, PIR sensor.


SPECIFICATIONS

ModelZGSM-PV703020
LED Number60units
Nominal Power30W
Battery Spec.20AH /11.1V
Solar Panel Spec.Monocrystal 70W /18V
LED BrandPhilips Lumileds 3030 2D
Luminous Flux4200lm
Light type1S
CCT3000K.4000K.5000K.5700K
Charge time<3.5 Hours (Low battery voltage)
Worktime at Energy
-saving Model(30%)
more than 19.5 hours
Discharge Temperature-20℃~+60℃
Charge temperature<60℃
Light control voltage5-11V
mounting height4-6m
space between light12~21m
Pole Diamerter FixtureRound pole: Φ60~85mm; Square pole : 60 x60 ~77 x77mm
RatingIP65 IK10
Induction TypeHuman infrared induction or microwave induction function
CertificationCE,ROHS,LM80
warranty period3 years


PACKING DETAILS

Fixture Dimension1120x426x229mm
Fixture Weight17.8kg
Packing Dimension1175X485X140mm
Packing Weight19.4kg

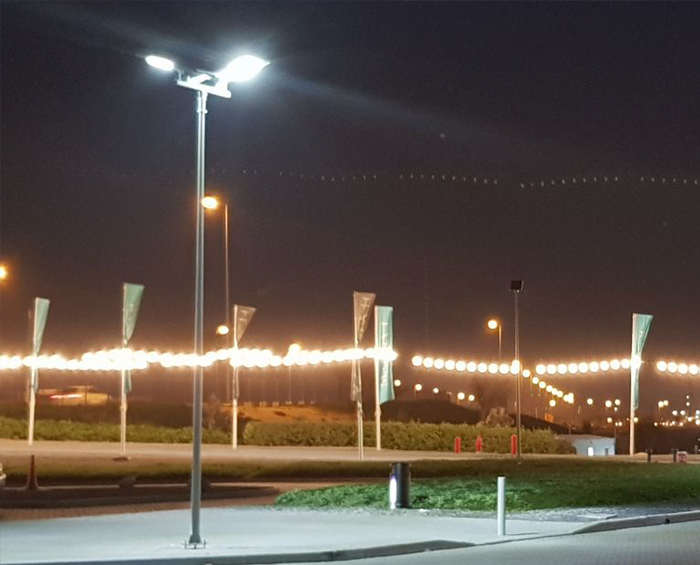

APPLICATIONS
