25w Road Lighting Luminaires With IP66 And IK08

ENEC AND CB CERTIFIED 25W TOOL-LESS LED STREET LIGHT FIXTURES Series K LED Street Light Model: ZGSM-LD25KS Application: Street | Road | Highway | Parking lot | Bridge | Path

Send InquiryChat Now

Product Details

KEY FEATURES

1. Wide power range: 25W~200W.

2. Special circuit design, single LED’s damage won't affect others' normal work.

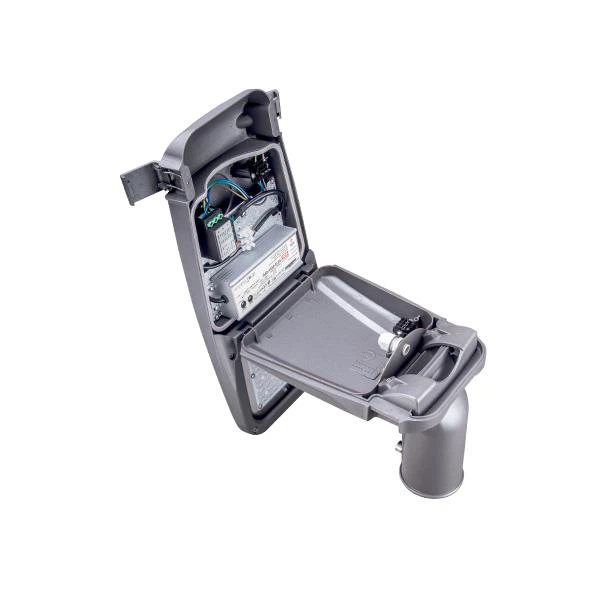

3. Tool-less open for easy installation, replacement and maintenance.

4. Power-off protection makes the power automatically off when fixture is opened.

5. Smooth body would greatly diminish dust accumulation and bird droppings heap up.

6. Level bubble makes it easy for the installer to adjust the position of the lamp.

7. High Lumen output up to 150lm/ w with high quality LED chips.

8. Pass the 1000 hour salt spray test.

9. Vertical and horizontal installation both available, adjustable by ±15° in both directions.

10.Multiple lighting control options are available, e.g. DALI, 1-10V, photocell, motion sensor.

11.Designed to last at least 100, 000 hours at L70.

12.Multiple lighting distributions are available.

13.ENEC/ CB/ CE/ RoHS/ IK08 /IP66 /LM79

14. 7 years limited warranty available.

SPECIFICATIONS

Model ZGSM-LD25KS
LED Brand LUMILEDS® LUXEON 3030 or 5050
Driver Brand Meanwell HLG series/ Inventronics
Norminal Wattage 25W
LED Chip Quantity 3030: 48pcs 5050: 24pcs
Input Voltage 100-240/277VAC
Power Efficiency >90%
Power Factor >0.95
Lamp Rated Luminous Efficiency 125-145 lm /w
Lamp Rated Lumen output 3125-3625 lm (Lumen tolerance +/- 5%)
Color Rendering Index 70(80 optional)
Color Temperature 3000K or 4000K or 5000K or 5700K
Photometric Type Type I Medium;Type II Medium;Type III Medium
Optimal Operating Temperature 25℃
Storage Temperatures -40°C~50°C
Working Environment Between-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion < 10%
Lumen Maintenance > 100,000 hours -L70, @25 ºC (77 ºF)
Wind Index Force 12
Body and Shell Materials Die-cast aluminum; Tempered Glass
Pole Fitter Diameter 60mm ( 50mm optional)
Rating IP66 IK08
Protection  Class I ( Class II optional)
SPD 10KV (20KV optional)
Certification CE, ENEC,CB ROHS,LM80,LM79,IP66 IK08,ISTMT
Dimming Options 1-10V or DALI or PWM or Timer
Control Options Photocell or Motion sensor or Smart control
Color Options Deep grey or Light grey
Warranty 7 years

PACKING DETAILS

Packing Details
Fixture Dimension 614 X224 X135 mm
Fixture Weight 5.8 kg /12.8 lbs
Packing Dimension 675 X290 X220 mm
Packing Weight 7.3 kg /16.1 lbs

APPLICATIONS
