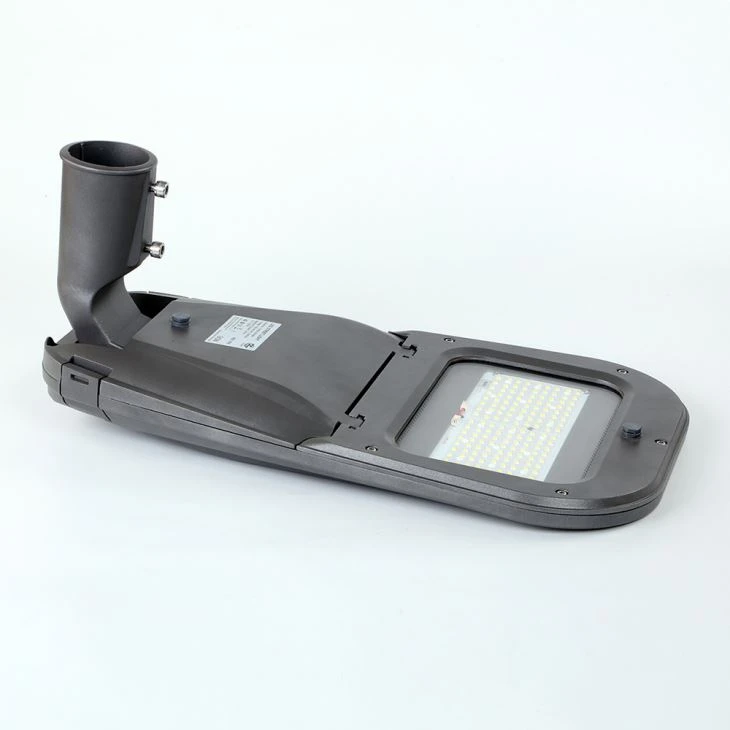

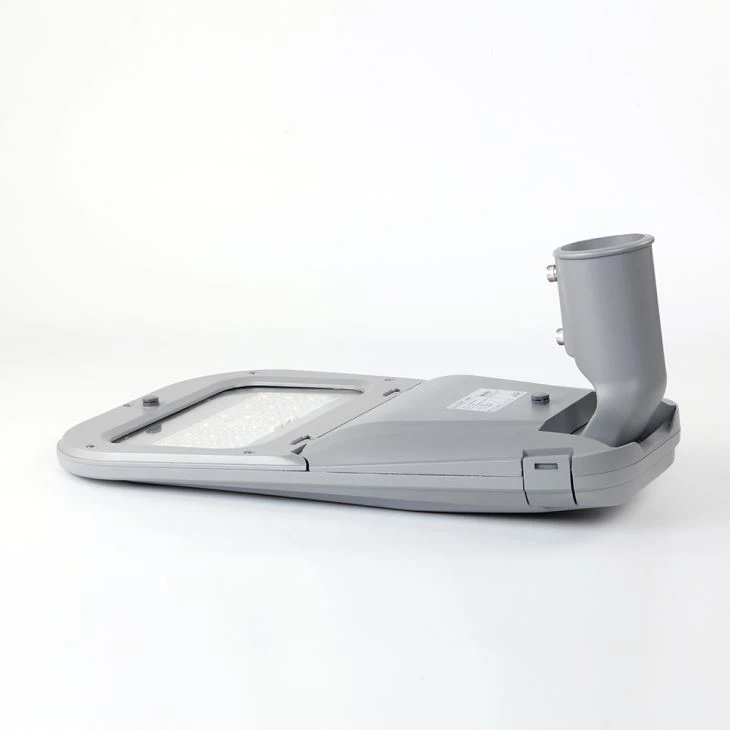

ZGSM 5050 Chip KL LED Street Light

Packaging & Delivery Packaging Details 1 piece/ carton, 915*495*225mm, 14.7kgs Port Ningbo/Shanghai Specification Product Description High Efficacy LED Source ZGSM K series LED Street Light are using Lumileds Luminous source, providing excellent lumen output, long-lasting stability and...

Send Inquiry

Product Details

Packaging & Delivery
  • Packaging Details

  • 1 piece/ carton, 915*495*225mm, 14.7kgs

  • Port

  • Ningbo/Shanghai


Specification
Model: ZGSM-LD150KL
Power
150w
Input voltage
90-305VAC
Power Factor
>0.95
CRI
70/80
Rating
IK08,IP66
Efficiency
up to 150lm/w
Lumens
19500-22500lm
Lifetime
L70> 100,000hours
Product Description


High Efficacy LED Source

ZGSM K series LED Street Light are using Lumileds Luminous source, providing excellent lumen output, long-lasting stability and splendid sight. The efficiency of 5050 chips is more than 185 lm/w.


High-end LED Driver

High-end MeanWell HLG Series Flicker free LED

driver Optimal stabilityperformance and lifespan.


Self-cleanness

Smooth body would greatly diminish dust accumulation and bird droppings heap up.




Easy Maintenance

Buckle for fixing heat sink could be opened without tools.



Multiple Installation

Vertical and horizontal installation both available.

The installation angle can be adjusted 0-15degrees



Variety Light Distribution

ZGSM provides different light distribution lens for the K Series street light to achieve best lighting effect in different applications.
Follows the North American IESNA standard in providing the optional lens width ,Type I, Type II ,Type III.



Power-off Protection

Power would automatically be off once the fixture body opened.



Remote Smart Control System

ZGSM provides a total solution for intelligence street lighting system. Communication via GPRS/CDMA/WCDMA wireless network or cable network & monitor center and proceeds with communication via ZIGBEE/PLC/ROLA.



Surge Protection Device

ZGSM brand TUV approved 10KV surge protection device is the standard configuration in all of our LED Street Light.

Related Products
Model
ZGSM-LD25KS
ZGSM-LD35KS
ZGSM-LD55KS
Power
25w
35w
55w
Lumen
3125-3625 LM
4375-5075 LM
6875-7975 LM
Warranty
7 YEARS
7 YEARS
7 YEARS
Model
ZGSM-LD60KM
ZGSM-LD90KM
ZGSM-LD120KM
Power
60w
90w
120w
Lumen
7800-9000 LM
11700-13500 LM
15600-18000 LM
Warranty
7 YEARS
7 YEARS
7 YEARS
Model
ZGSM-LD150KL
ZGSM-LD180KL
ZGSM-LD200KL
Power
150w
180w
200w
Lumen
19500-22500 LM
23400-27000 LM
26000-30000 LM
Warranty
7 YEARS
7 YEARS
7 YEARS

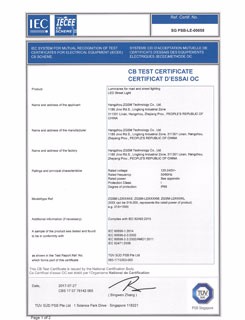

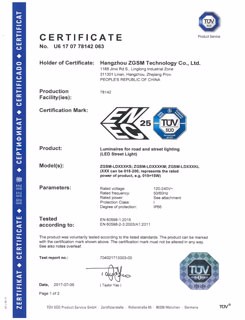

Certifications

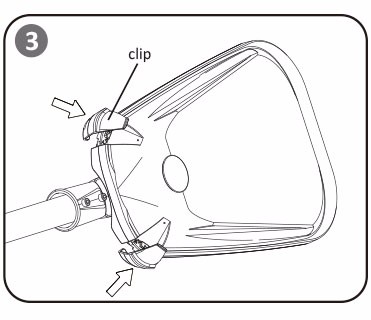

Installation Process
