Led Lamps City Road Street Lighting

Packaging & Delivery Selling Units: Single item Single package size: 68X29X22 cm Single gross weight: 7.4 KG Package Type: 1Pieces/Carton Lead Time : Specification Product Description High Efficacy LED Source ZGSM K series LED Street Light are using Lumileds Luminous source, providing...

Send Inquiry

Product Details

Packaging & Delivery

  • Selling Units:

  • Single item

  • Single package size:

  • 68X29X22 cm

  • Single gross weight:

  • 7.4 KG

  • Package Type:

  • 1Pieces/Carton

  • Lead Time :

  • Quantity(Piece)1 - 1>1
    Est. Time(day)3To be negotiated
Specification
Model: ZGSM-LD35KS
Power
35w
Input voltage
90-305VAC
Power Factor
>0.95
CRI
70/80
Rating
IK08,IP66
Efficiency
up to 145lm/w
Lumens
4375-5075lm
Lifetime
L70> 100,000hours
Product Description


High Efficacy LED Source

ZGSM K series LED Street Light are using Lumileds Luminous source, providing excellent lumen output, long-lasting stability and splendid sight. The efficiency of 5050 chips is more than 185 lm/w.


High-end LED Driver

High-end MeanWell HLG Series Flicker free LED

driver Optimal stabilityperformance and lifespan.


Self-cleanness

Smooth body would greatly diminish dust accumulation and bird droppings heap up.




Easy Maintenance

Buckle for fixing heat sink could be opened without tools.



Multiple Installation

Vertical and horizontal installation both available.

The installation angle can be adjusted 0-15degrees



Variety Light Distribution

ZGSM provides different light distribution lens for the K Series street light to achieve best lighting effect in different applications.
Follows the North American IESNA standard in providing the optional lens width ,Type I, Type II ,Type III.



Power-off Protection

Power would automatically be off once the fixture body opened.



Remote Smart Control System

ZGSM provides a total solution for intelligence street lighting system. Communication via GPRS/CDMA/WCDMA wireless network or cable network & monitor center and proceeds with communication via ZIGBEE/PLC/ROLA.



Surge Protection Device

ZGSM brand TUV approved 10KV surge protection device is the standard configuration in all of our LED Street Light.

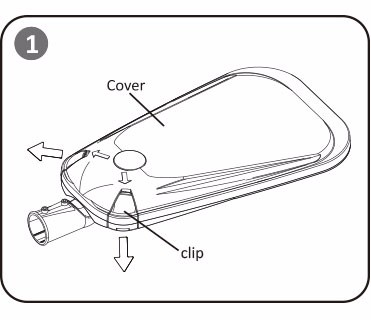

Installation Process
Applications
