80w LED Street Light

80w LED Street Light

Spec-80w Product Description High Efficacy LED Source ZGSM H series LED Street Light are using Lumileds Luminous source, providing excellent lumen output, long-lasting stability and splendid sight. The efficiency of 5050 chips is more than 185 lm/w. High-end LED Driver H igh-end MeanWell HLG...

Send InquiryChat Now

Product Details

Specs
Model:  ZGSM-LD80H4
Power
80w
Input voltage
90-305VAC
Power Factor
>0.95
CRI
70/80
Rating
IK10,IP66
Efficiency
up to 165lm/w
Lumens
8800lm-13200lm
Lifetime
L70> 100,000hours
Product Description



High Efficacy LED Source

ZGSM H series LED Street Light are using Lumileds Luminous source, providing excellent lumen output, long-lasting stability and splendid sight. The efficiency of 5050 chips is more than 185 lm/w.




High-end LED Driver

High-end MeanWell HLG Series Flicker free LED driver
Optimal stabilityperformance and lifespan.


Flexible Modules Design

Modular structure making the lamp more easier and faster to be designed ,easy to do replacement and maintaining.A variety of combinations can multiply increase the brightness and illumination.
Modular concept, piece combinations as your require. Can satisfy any number of lanes and width combinations. With IP67 Protection, adapt to any weather conditions.




Post Top or Side Entry Mount

The H Series LED Street Light can both support vertical post top mount and horizontal side entry mount. and the installation angle can be adjusted 0-15 degrees



Variety Light Distribution

ZGSM provides different light distribution lens for the H Series street light to achieve best lighting effect in different applications.
follows the North American IESNA standard in providing the optional lens width ,Type I, Type II ,Type III and Type V.

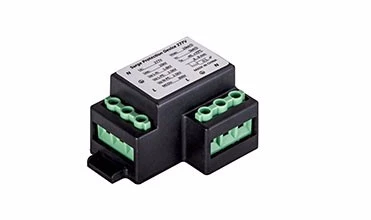

Surge Protection Device

ZGSM brand TUV approved 10KV surge protection device is the standard configuration in all of our LED Street Light.



Remote Smart Control System

ZGSM provides a total solution for intelligence street lighting system. Communication via GPRS/CDMA/WCDMA wireless network or cable network & monitor center and proceeds with communication via ZIGBEE/PLC/ROLA.

Related Products
Model
ZGSM-LD40H4
ZGSM-LD80H4
ZGSM-LD120H4
ZGSM-LD160H4
ZGSM-LD200H4
Modules
1
2
3
4
5
Power
40w
80w
120w
160w
200w
Lumen
4400-6600 LM
8800-13200 LM
13200-19800 LM
17600-26400 LM
22000-33000 LM
Warranty
7 YEARS
7 YEARS
7 YEARS
7 YEARS
7 YEARS
Installation Process
Applications
Certifications
Company Information
FAQ

Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Samples within 3 days, big order within 1-2 weeks.
Q3. Do you have any MOQ limit for led light order?
