150W, Outdoor LED Street Lights Fixtures-ZGSM

ZGSM series-KL outdoor LED street lights with the power from 120W to 200W; Advantages a. Fully aluminum alloy Die-casting case , stainless steel screws. b. High transparency tempered glass c. Smooth body with self-cleanness d. High lamp luminous efficiency: up to 125 LM/W. e. Toolless, the...

Send InquiryChat Now

Product Details


ZGSM series-KL outdoor LED street lights with the power from 120W to 200W;


Advantages

a. Fully aluminum alloy Die-casting case, stainless steel screws.

b. High transparency tempered glass

c. Smooth body with self-cleanness

d. High lamp luminous efficiency: up to 125 LM/W.

e. Toolless, the housing can be opened without tools.

f. Power turn off protector, protect the safety of personnel.

g. 10KV/20KV Surge Protection Device.

h. Imported breather, increase lamp service life.

i. Vertical and horizontal installation both available.

j. Variety of spectral types are optional for different road situation.

k. Meanwell HLG driver or Inventronics programmable driver

l. Enough space to extend the smart remote controller to support smart city

m. 7 years warranty for whole lamp


Application

Roadway, street, path way, park, public square, parking lot, carpark, high way, Urban main roads


Description

The KL series street light use fully aluminum alloy Die-casting case which have better heat transfer. All of the screws on KL series street fixture are all stainless steel to resistant to corrosion.

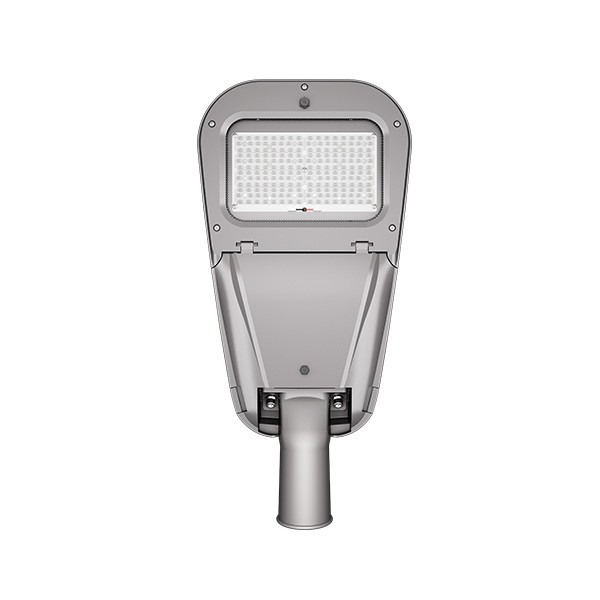

The high transparency tempered glass be used in KL series street light to improve high system efficiency and effective protect the LEDs without any broken.

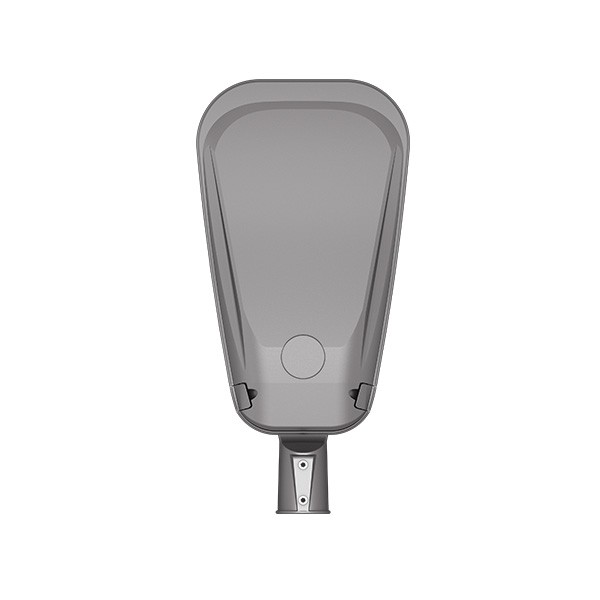

The smooth body design on the back of KL series street light can make the light no accumulation of dust and bird droppings with rain wash.

Through use the High efficiency Philips Luxeon 3030 2D LED chips, the system efficiency of KM series street light can up to 125lm/w.

With the snap lock, the street fixture can be opened without any tools. This design will be very convenient for maintain.

When people open the KL series street fixture, the power will be cut immediately since there have a power turn off protector mount on the end of driver input. This function can keep safety of personnel effectively.

In order to protect the KL series street fixture without any broken from surge, we add a surge protection device(SPD) on the end of driver input, it can resistant 10KV surges which possible come from power grid or thunder.

There have a imported breather both on driver box and led board box, with this breather, the inside and outside of street light can keep same air pressure, so there will be prevented the water leave inside the fixture.

KL series street light support both vertical installation and horizontal installation. The installation adjustable tilt angle can be 0-5-10-15°

KL series street light have three lens type can supply three light distribution to suit to different road width, pole distance, pole height and so on.

Normally, if non-dimmable version, we will use Meanwell high-end HLG series driver in KM series street light, if dimmable version, we will use Inventronics high-end programmable driver which integrate 0-10V,PWM and timer dimming and 6KV/10KV surge protection inside. It can provide excellent performance and lifetime.


Datasheet

Product

ZGSM-LD120KL

ZGSM-LD150KL

ZGSM-LD180KL

ZGSM-LD200KL

Nominal Wattage

120W

150W

180W

200W

LED Qty & Current

192 units &93mA

240 units &93mA

288 units &93mA

336 units &93 mA

Input Voltage

100-240V /277V AC 50 /60Hz

Dimming

0-5V, 0-10V, PWM, Timer

LEDBrand

Philips Lumileds 3030

Driver Brand

Non-dimmable: MeanWell HLG Driver | Dimmable: Inventronics Driver

Max. Current @120V

1.23A

1.54A

1.85A

2.06A

Max. Current @208V

0.71A

0.89A

1.07A

1.19A

Max. Current @240V

0.62A

0.77A

0.93A

1.03A

Max. Current @277V

0.53A

0.67A

0.80A

0.89A

Operating Temperature

-40 ºC to +50 ºC

Power Factor(PF)

>0.95

THD

<20%

Lumen Output(+/- 5%)

15000 lm

18750 lm

22500 lm

25000 lm

Luminaire efficacy(+/- 5%)

125 lm /w

125 lm /w

125 lm /w

125 lm /w

Optic

1M, 2M, 3M

CRI

>70

CCT

3000K(Warm White)4000K (Nature White),5000K (Pure White),5700K (Cool White)

Rang

IP66, IK08

Material

Die-cast aluminum;Tempered Glass

Installation

Horizontal and vertical  both available; Adjustable tilt angle: 0-5-10-15º

Accessories(Optional)

Motion Sensor, Photocell(NEMA)

Shell Color

Light Grey or Deep Grey

Lumen Maintenance

> 75,000 hours-L₇₀ at 25 ºC

Certifications

CE, ROHS, CB,ENEC, LM79, LM80, ISO9001, ISO14001

Fixture Weight

12.0 kg /26.5 lbs

12.0 kg /26.5 lbs

12.1 kg /26.7 lbs

12.2 kg /26.9 lbs

Packaging Weight

14.5 kg /32.0 lbs

14.5 kg /32.0 lbs

14.6 kg /32.2 lbs

14.7 kg /32.4 lbs

Packaging Dimension

915 X495 X225 mm /36.0 X19.5 X8.9 inches

Packaging Type

1 unit /ctn.


Case studies


122pcs x 200W H series street light with 6m pole for outside warehouse in Austria
