High lumen output 80w gas station street light
Overview
Inherited ZGSM new series consistent concise design, superiorperformance and extra long operation life.
ZGSM new series LED Recessed Luminaires are using HighLuminous Eficient PHIUPS LUXEONRT Luminous Sourceand High Reliable MEANWELLE HLG LED Driver
The luminaires own up: to 80 lumens; per watt efficiency andover than 100,000 hours operation life.
--- High Quality and Brightness LED Light Source.
--- Stable and Efficient LED Driver.
--- Optimal Heat Sinking Performance.
--- Superior Optical Design.
--- Exclusive Appearance Design.
Supply Ability:60000 Piece/Pieces per Month
Packing: 1UNIT/CARTON425 x365 x200 mm, 5.2 kg
Port:SHANGHAI NINGBO
Lead Time :Shipped in 3-7 days after payment
Product Benefits
LED LUMINOUS SOURCE

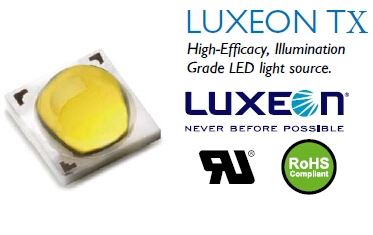

 The ZGSM H-Series LED Recessed Lights are utilizing Lumileds LUXEON TX LED luminous source, providing excellent lumen output - up to110LPW, long-lasting stability and splendid sight. Each LUXEON TX owns eletrostatic protection component, maximally avoid the damage of electrostatic. More information about the LUXEON TX and solid-state lighting technologies can be found at www.lumileds.com. |
LED DRIVER
ZGSM3RD GENERATION LED MODULE
 Exquisite design with powerful thermal performance, as well as high reliable waterproof rating. |
![240D5@9X}T~S(]I%[{5XL)4](/Content/upload/2019241428/201902231708543608898.jpg)
XTREME LUMINAIRE DESIGN
Specifications | |
Model | ZGSM-QD80H |
LED Brand | Lumileds LUXEON® TX/LG |
Driver Brand | Meanwell HLG series |
Norminal Wattage | 80W |
LED Module Quantity | 2 modules |
Input Voltage | 100-240/277VAC/DC24V |
Power Efficiency | >90% |
Power Factor | >0.95 |
Lamp Rated Luminous Efficiency | >110lm/w |
Lamp Rated Lumen output | 8800 lm (Lumen tolerance +/- 5%) |
Color Rendering Index | Ra>70 |
Color Temperature | 4000 5000 or 5700K |
Photometric Type | 60,90,110 degrees |
Optimal Operating Temperature | 25℃ |
Storage Temperatures | ‘-40℃~+70℃ |
Working Environment | Between-40°C~+50°C, 10%~90%RH |
Total Harmonic Distortion | < 10% |
Lumen Maintenance | > 100000 hours -L70, @25 ºC (77 ºF) |
Body and Shell Materials | Anodized Aluminum |
IP Rating | IP66 with test report |
IK Rating | IK10 with test report |
Certification | CE,ROHS,GS,CB |
Optional Function | 1-10V DC or PWM Signal or Resistance Dimming |
Timer/Photocell Control | |
Warranty | 5 years |
Ceiling Thickness | 5 to 25 mm /0.2 to 1.0 inches |
Hole Size | 346 ×285 mm /13.6 ×11.2 inches |
Application
