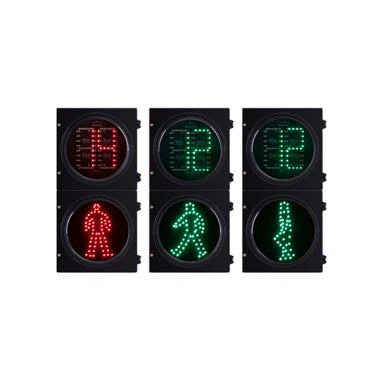

LED Traffic Signal Light of 200 and 300mm size

Utilizing imported LED chip, long lifespan.

Novel structure and beautiful appearance, using inflaming

retarding and UV-proof housing material.

In accordance with GB/14887-2011 and relevant International standard.

Visible distance: >500M.

Working humidity: ≤95%

LED Driver: Constant current driver (Efficiency>85% PF>0.85).

Model No.		RX300-3-ZGSM-2
Electrical Specifications
Power		Red: ≤ 15W \| Green: ≤ 15W
LED Q'ty		Red: 64 pcs \| Green: 70 pcs
Operating Voltage		110V or 220V AC(±10%), 50/60Hz \| 24V DC
Operating Temp.		-40ºC ~ +75ºC
Operating Humidity		10% ~ 90%
Photometric Specifications
Apply Diameter		Ф300 mm (Ф12 inches)
Visible Range		200m (656ft)
Wavelength		Red: 620 - 622.5nm \| Green: 502.5 - 505nm
Intensity		Red: ≥ 4000 cd/m² \| Green: ≥ 4000 cd/m²
Visual Angle		25º ±2º
Mechanical Specifications
IP Rating		IP54
Warranty		1 Year
Housing Material		PC or Aluminum
Lens Material		PC Housing: PC \| Aluminum Housing: Glass
Fixture Dimension		PC: 740 x387 x150 mm (29.1 x15.2 x5.9 inches)
		Aluminum: 700 x367 x125 mm (27.6 x15.2 x5.9 inches)
Fixture Weight		PC: 8.6 kg (19.0 lbs) \| Aluminum: 11.6 kg (25.6 lbs)
Standard(s)		GB14887-2006, EN50293:2000 & EN12368:2006
Certificate(s)		CE, RoHS
Packing Information
Packing Type		2unit /ctn.
Packing Dimension		820 x380 x440 mm (32.3 x15.0 x17.3 inches)
Gross Weight		PC: 19.5 kg (43.0 lbs) \| Aluminum: 25.5 kg (56.2 lbs)
Accessories		Visor, Bracket
