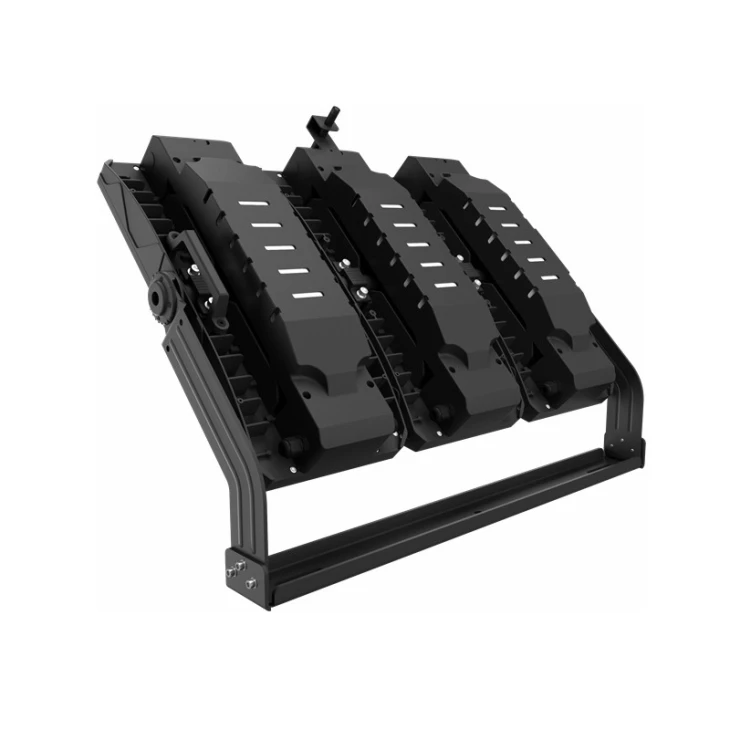

Quick Delivery 840W LED Stadium Lamp With CE
Major Advantages
- Lumileds 3030 Chips With high efficacy.
- Meanwell/ Inventronics Driver.
- Multiple beam angles available: 15. 30, 45, 60 degree.
- Minimum 70 CRI，80 CRI optional.
- Standard color temperatures: 2700K, 3000K, 4000K, 5000K, 5700K, 6500K
- Luminous Efficacy up to 150lm/W.
- CE, RoHS, LM-80, ISO9001, ISO14001, ISO5001
- Lifespan at least 100,000 Hours Lifespan(L70, 25℃)
- 5 Years Warranty For the whole lamp.
Company Information
Founded in 2005, ZGSM is a hi-tech and privated Enterprise devoted to R&D, producing and selling of high quality LED indoor/ outdoor lights, LED traffic lights, solar panels and solar powered LED lighting system and so on. As one of the patent model enterprises and the fifirst batch of saving energy service company in Zhejiang Province, we have registered more than fifty products; we are also the member of Illuminating Engineering Society and Semiconductor Industry Association in China.
ZGSM has passed ISO9001 international quality management system certificates,ISO14001 international environmental management system certificates and ISO50001 international energy management system certificates. All of our products have CE, ROHS, most have passed CB,ENEC,UL,DLC,LM79,SAA, FCC certification and test report.
FAQ
Q: Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: Where is your main market?
A: We have sold our LED products to more than 80 countries over the world. Where need green lighting, where has our products.
Q: What's the efficacy of this Model?
A: we use high efficacy Lumileds Luxeon 3030 2D chips and Lumileds 5050 chips, the efficacy of lamp is up to 150lm/W.
Q: How about the warranty and lifetime of L Series?
A: We provide 7 years warranty for the whole lamp. The lifetime of this model is 100000hours@25℃，L70.
If there is any problem about the lamps purchased from us, pls kindly take some photos or video and send it to us. We will check and confirm the problem at once, then deliver the broken component or the whole lamp to you according to the problem ASAP.
Our Service
1.Quickly reply, 7x24 available.
2. We own experienced and enthusiastic sales & after- sale services.
3. You can customize the details of products, including technical data, label and packing.
4. Shipping port: Ningbo/Shanghai, Shenzhen Port.
5. Discount are offered based on order quantities.
Hot Tags: Quick Delivery 840W LED Stadium Lamp With CE, manufacturers, suppliers, buy, cheap, price
Technical Details
| Model Number | ZGSM-TGD840M |
| LED Brand | Lumileds LUXEON® 3030 2D |
| Driver Brand | INVENTRONICS EUK Series |
| Lamp Wattage | 840W |
| LED Quantity | 1334 Pcs |
| Input Voltage | 100-240/277VAC, 50/60Hz |
| Power Efficiency | >90% |
| PF | >0.95 |
| Lamp Efficiency | >150lm/w |
| Total Lumen output | 126000 lm (Lumen tolerance +/- 5%) |
| CRI | Ra>70 |
| CCT | 3000K, 4000K, 5000K or 5700K |
| Beam Angle | 15, 30, 45, 60 degrees |
| Storage Temperatures | '-40ºC~+50ºC |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| THD | < 10% |
| Lumen Maintenance | > 100,000 hours -L70, @25 ºC (77 ºF) |
| Body and Shell Materials | Stretched Aluminium Alloy |
| IP IK Rating | IP66 IK10 with test report |
| Certification | CE,ROHS, ISO9001, ISO14001 |
| Optional Function | 1-10V DC Dimming |
| Warranty | 5 years for the whole lamp |
| Packing Details | |
| Fixture Dimension | 687 x 836 x 222 mm |
| Fixture Weight | 43.0 kgs |
| Packing Dimension | 770 x 900 x 235 mm |
| Packing Weight | 50.0 kgs |
