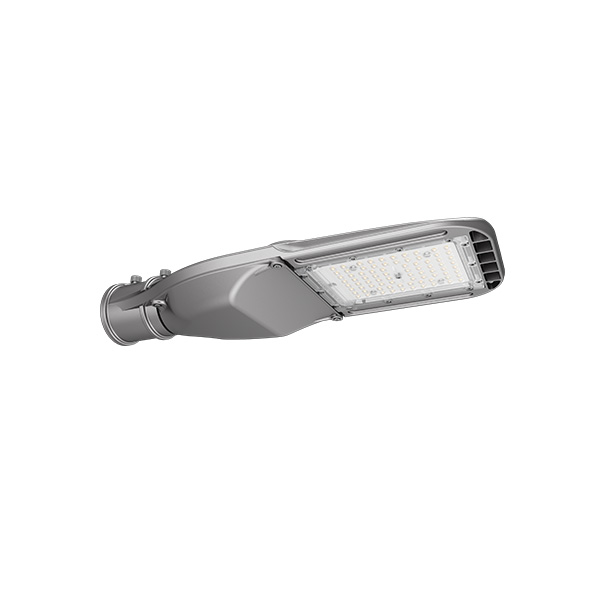

Ultra Thin 28W LED Road Light
1. Competitive price with 5 years warranty.
2. Smart and slim housing, saving shipping cost.
3. 10KV SPD.
4. 130-135 lm/W.
5. LEDs, Inventronics LED drivers.
Datasheet
Electrical Specifications | |
| Nominal Wattage | 28W |
| Nominal Voltage | 100-240V /277V , 50/60Hz |
| Optimal Operating Temperature | - 40 ºC to 50 ºC |
| Operating Humidity | 10% to 90% |
| Power Factor (PF) | >0.9 |
| Driver Efficiency | >90% |
| Photometric Specifications | |
| Correlated Color Temperature (CCT) | 3000K 4000K 5000K 5700K |
| Lumen Output | 3780 lm ( +/- 5% ) |
| Color Rendering Index (CRI) | Ra≥75 |
| Mechanical Specifications | |
| IP Rating | IP66 |
| Lifetime | 100000 hours |
| Housing | Anodized Aluminum |
| Heat Raditor | Anodized Aluminum |
| Lens | PC |
| Product Dimensions | 447 x 179 x 77 mm |
| Carton Size | 465 x 200 x 100 mm |
| N.W/G.W | 2.1 kg/3.1 kg |
Above temperature protection by external NTC
Integrated customized heat management (Driver Guard)
Pressure aluminum Die cast housing
High efficiency, long life LEDs
Most efficient LENS Optics for better distribution
Complete assembly with LED Driver inbuilt in luminaire and
Long life and strong protection against moisture, vibration and temperature
