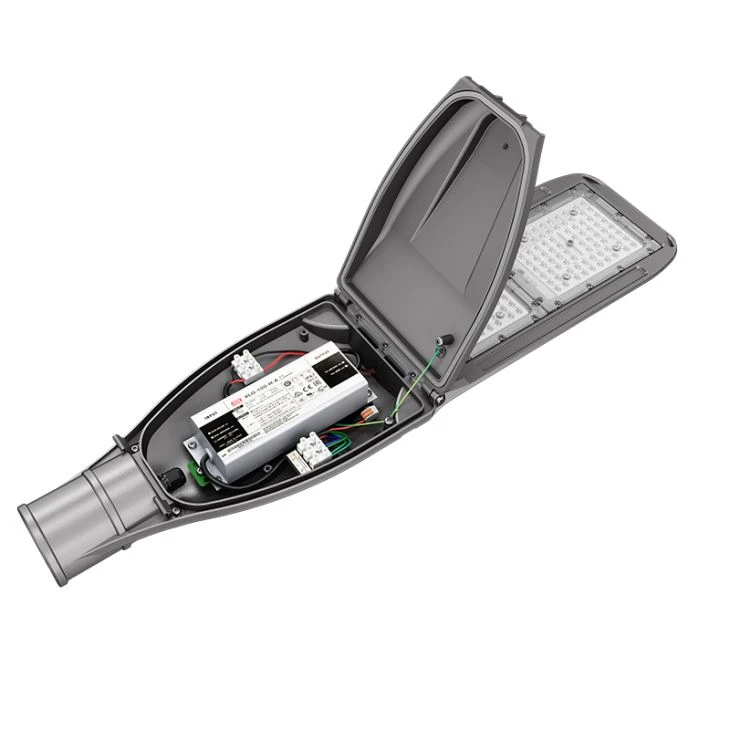

Die Casting Aluminum Housing 130W LED Street Light
ZGSM Kmini2 series high power LED street lights are designed for use in city streets, municipal roadways, bridges, housing projects, public parks, parking lots, yards and gardens, and other settings with needs for high-brightness general illumination during the night time.
All of ZGSM's long life LED luminaires are designed to meet the most demanding specification criteria while offering maximum energy savings, reduced maintenance costs, and a superior quality of light.
| Model | ZGSM-LD130Kmini2 |
| LED Brand | LUMILEDS® LUXEON 3030 2D, 5050 |
| Driver Brand | Meanwell or Inventronics |
| Norminal Wattage | 130W |
| LED Quantity | 160 units /126mA 3030chips; 5 6units /97mA 5050 chips |
| Input Voltage | 100-240/277VAC/DC12/24V |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | >136 lm /W (3030chips); 150 lm/W (5050chips) |
| Lamp Rated Lumen output | 17680 lm (3030chips); 19500 lm (5050chips) |
| Color Rendering Index | Ra>70 |
| Color Temperature | 3000K, 4000K, 5000K or 5700K |
| Photometric Type | Type II;Type II BLS |
| Optimal Operating Temperature | 25℃ |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100000 hours -L70, @25 ºC (77 ºF) |
| Materials | Housing: Die-cast aluminum, Lens: PC |
| IP Rating | IP66 with test report |
| IK Rating | IK10 with test report |
| Certification | EMC, LVD, CE, ROHS, IOS9001, ISO14001,ISO 50001, LM80 |
| Optional Function | Dali, 1-10V DC or PWM Signal or Resistance Dimming, Timer, Photocell |
| Warranty | 5 years |
| Fixture Dimension | 717*178*99 mm |
| Fixture Weight | 3.84 kgs |
| Packing Dimension | 735*195*120 mm |
| Packing Weight | 4.42 kgs |
