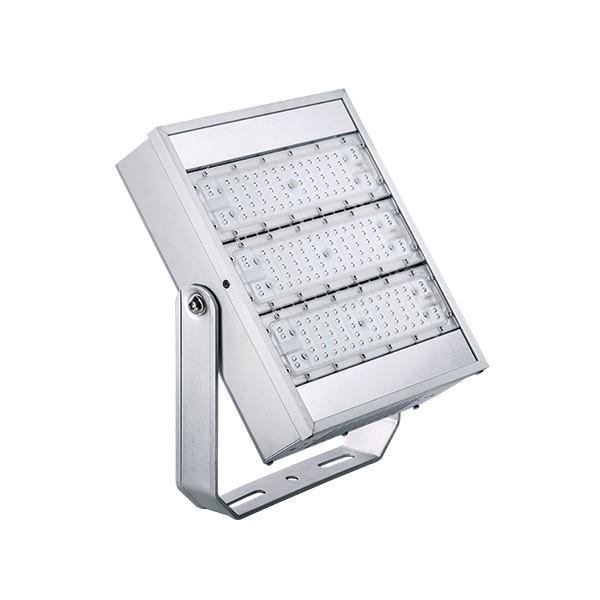

TM-21 150W led floodlight
The ZGSM® H4B/H5B-Series LED floodlights are using LUMILEDS® LUXEON 3030 2D
luminous source, providing excellent lumen output, long-lasting stability and splendid
sight. The ZGSM H4B/H5B -Series LED floodlights have a high luminous efficiency and
better service life. Provide 7 years warranty on luminaire.
About Product details:
| Specifications | |
| Model | ZGSM-FGD150H5B |
| LED Brand | LUMILEDS LUXEON 3030 2D |
| Driver Brand | Meanwell HLG series |
| Norminal Wattage | 150W |
| LED Module Quantity | 3 modules |
| Input Voltage | 100-240/277VAC |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | >130lm/w |
| Lamp Rated Lumen output | 19800 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | Ra>70 |
| Color Temperature | 4000 5000 or 5700K |
| Photometric Type | 60,90,110 degrees |
| Optimal Operating Temperature | 25℃ |
| Storage Temperatures | ‘-40℃~+70℃ |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100,000 hours-L70 at 25 ºC |
| Materials | Housing: Die-cast aluminum; Heat sink: Stretched Aluminium Alloy; Lens: PC |
| IP Rating | IP66 with test report |
| IK Rating | IK10 with test report |
| Certification | CE,ROHS,CB, |
| Optional Function | 1-10V DC or PWM Signal or Resistance Dimming |
| Timer/Photocell Control | |
| Warranty | 7 years |
| Packing Details | |
| Fixture Dimension | 312*270*263 mm |
| Fixture Weight | 4.5 kg |
| Packing Dimension | 430*370*200mm |
| Packing Weight | 5.4 kg |
Project picture:
About ZGSM manufactory:
FAQ:
1,What kind of shipping do you have?
DHL,FEDEX,UPS,EMS,TNT,etc.
2,What can you get from us?
Excellent products (unique design, advance printing machine,strict quality control ) Factory direct sale (favorable and competitive price) Great service(OEM,ODM, after-sales services, fast delivery) Professional business consultation.
3, How the product pricing and how to consult prices?
A:We pricing the products according to the customers' choice on materials,printing,and other process flow and so on. And you can inquiry by TM,skype or send e-mail to us.
