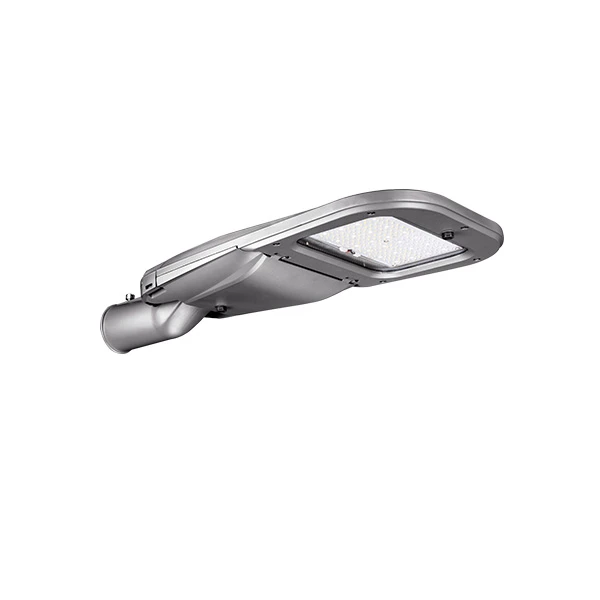

90W LED STREET LIGHT WITH ENEC CB Certificate
Advantages:
AC277/380/480V are possible if nee
Ideal choice for sports stadiums, airports, shipping ports or any high tower lighting location
500 hours salt spray test according to ISO 9227
Use stainless steel screws for whole luminaire, no corrosion worrie
Value for money / most competitive produc
7 years warranty.
IP66 and IK08.
More than 4 types of light beam angle are provided
With Surge Projector to protect lamp from up to 10KV/10KA.
100,000 hours lifetime saving maintenance cost
With Imported Breather to keep the air pressure balance inside and outside the lamp, improving work performance, life of the lamp and prevent burst.
Come with Short cap if NEMA mounted without controller
Laser print for LOGO or customized labels are possibl
ISTMT test report is provided for all the models
Specification
| Model | ZGSM-LD90KM |
| LED Brand | Philips LUMILEDS® LUXEON 3030/5050 |
| Driver Brand | Non-dimmable: MeanWell HLG Driver | Dimmable: Inventronics Driver |
| Norminal Wattage | 90W |
| Input Voltage | 100-240V /277V AC 50 /60Hz |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | >130 lm /w - 150 lm/w |
| Lamp Rated Lumen output | 11700 lm - 13500 lm |
| Color Rendering Index | Ra>70 |
| Color Temperature | 4000K (Nature White), 5000K (Pure White), 5700K (Cool White) |
| Photometric Type | 1M,2M,3M |
| Operating Temperature | 40 ºC to +50 ºC |
| Total Harmonic Distortion | < 20% |
| Lumen Maintenance | > 100,000 hours -L70, @25 ºC (77 ºF) |
| Materials | Die-cast aluminum;Tempered Glass |
| IP Rating | IP66 with test report |
| IK Rating | IK08 with test report |
| Certification | CE, ROHS, IOS9001, ISO14001, LM80 |
| Optional Function | 0-5V, 0-10V, PWM, Timer |
| Photocell Control | |
| Warranty | 7 years |
| Packing Details | |
| Fixture Weight | 8.1 kg |
| Packing Dimension | 785 X410 X170 mm |
| Packing Weight | 9.0 kg |
Project picture
Factory show
AFTER-SALE SERVICE-7 years warranty
Hangzhou ZGSM Technology Co., Ltd ("ZGSM") warrants this ZGSM-branded hardware product against defects in
materials and workmanship under normal use for a period of SEVEN (7) YEAR from the date of purchase.ZGSM provides free repair or replacement within warranty period.
ZGSM shall charge against defeats by abnormal storage, usage, connection or change the structure or any components of the product.
Damage by thunder stroke over 6KV(L,N to FG) /4KV(L to N) will not covered by warranty based on IEC61000-4-5.
