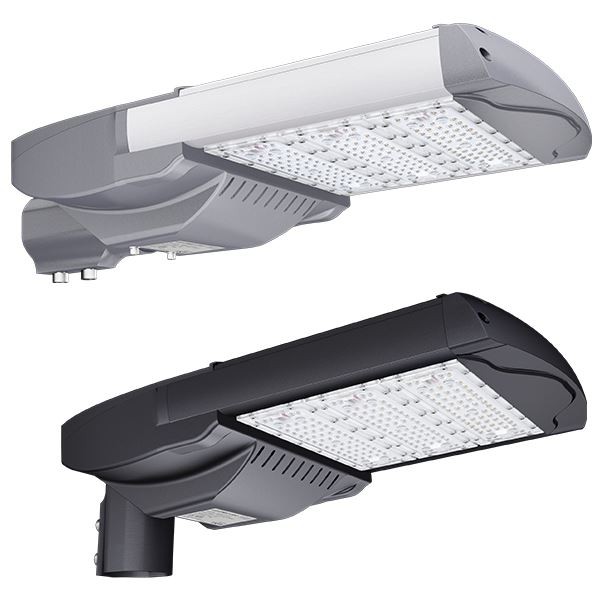

Modular Design 120 Watt LED Luminaire with Lumileds Chips
| Specifications | |
| Model | ZGSM-QD120H6 |
| LED Brand | LUMILEDS® LUXEON 3030 or 5050 |
| Driver Brand | Meanwell / Inventroncis |
| Norminal Wattage | 120W |
| LED Module Quantity | 2 modules |
| Input Voltage | 100-240/277VAC/DC24V |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | 125 lm/W (Lumileds 3030chips) or 155 lm/W (Lumileds 5050chips) |
| Lamp Rated Lumen output | 15000 lm (Lumileds 3030chips) or 18600 lm (Lumileds 5050chips |
| Color Rendering Index | Ra>70 |
| Color Temperature | 3000 4000 5000 or 5700K |
| Photometric Type | 60,90,110 degrees |
| Optimal Operating Temperature | ‘-40℃~+50℃ |
| Storage Temperatures | ‘-40℃~+50℃ |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 20% |
| Lumen Maintenance | > 100000 hours -L70, @25 ºC (77 ºF) |
| Body and Shell Materials | Anodized Aluminum |
| IP Rating | IP66 with test report |
| IK Rating | IK10 with test report |
| Certification | CE,ROHS,GS,CB,SAA,CB |
| Optional Function | Dali, or Timer, or 0-10V Dimming, or Motion Sensor |
| Warranty | 7 years |
| Ceiling Thickness | 5 to 25 mm /0.2 to 1.0 inches |
| Hole Size | 346 ×285 mm /13.6 ×11.2 inches |
| Packing Details | |
| Fixture Dimension | 316 x304 x120 mm |
| Fixture Weight | 3.6 kg /8.0 lbs |
| Packing Dimension | 355 x365 x200 mm |
Applications
Overview
The ZGSM® H Series LED street lights are using LUMILEDS® LUXEON 3030 2D luminous source, providing excellent lumen output, long-lasting stability and splendid sight.
The ZGSM H-Series LED street lights have a high luminous efficiency and better service life. Provide 7 years warranty on luminaire.
Product Benefits
Optics
Details
Company Profile
Production Line
Product Benefits
How to place your order:
1. Send us your order list (models/quantities/colors)
2. we will send you PROFORMA INVOICE (PI) with shipping cost and Payment information for your confirmation.
3. You arrange payment after you confirmed proforma invoice, we will arrange production after received your payment notice.
Specific delivery date depends on your specific needs, normally delivery in 1-3 days.
4.We will arrange delivery after your payment arrived and goods ready,and at the same time we will tell you goods tracking number so that you could know your goods condition by this number from courier site.
5.You will receive your order in about 3-5 days after goods ship out.
