KEY FEATURES
1. Wide power range: 40W~240W.
2. Special circuit design, single LED’s damage won't affect others' normal work.
3. Modular design for easy installation, replacement and maintenance.
4. High Lumen output up to 165lm/ w with high quality LED chips.
5. Variety applications with different mounting Accessories.
6. Multiple lighting control options are available, e.g. DALI, 1-10V, motion sensor.
7. Designed to last at least 100, 000 hours at L70.
8. Multiple lighting distributions are available.
| SPECIFICATIONS | |
| Model | ZGSM-SDD200H5 |
| LED Brand | Lumileds 3030 |
| Driver Brand | Meanwell HLG series |
| Norminal Wattage | 200W |
| LED Module Quantity | 4 modules |
| Input Voltage | 100-240/277VAC |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | >115 lm/w |
| Lamp Rated Lumen output | 23,000 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | Ra>70 |
| Color Temperature | 3000K, 4000K, 5000K or 5700K |
| Optic | TypeI, Medium; TypeII, Medium; TypeIII, Medium; TypeV, Short |
| Optimal Operating Temperature | 25℃ |
| Storage Temperatures | ‘-40℃~+70℃ |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 75,000 hours -L70, @25 ºC (77 ºF) |
| Materials | Housing: Die-cast aluminum; Heat sink: Stretched Aluminium Alloy; Lens: PC |
| IP Rating | IP66 with test report |
| IK Rating | IK10 with test report |
| Certification | CE, ROHS, IOS9001, ISO14001, LM80 |
| Dimming | 1-10V, PWM, Resistance, Timer |
| Accessories (Optional) | Motion sensor |
| Warranty | 5 years |
| PACKING DETAILS | |
| Fixture Dimension | 385 x270 x165 mm |
| Fixture Weight | 5.2 kg /11.5 lbs |
| Packing Dimension | 505 x370 x200 mm |
| Packing Weight | 6.1 kg /13.4 lbs |

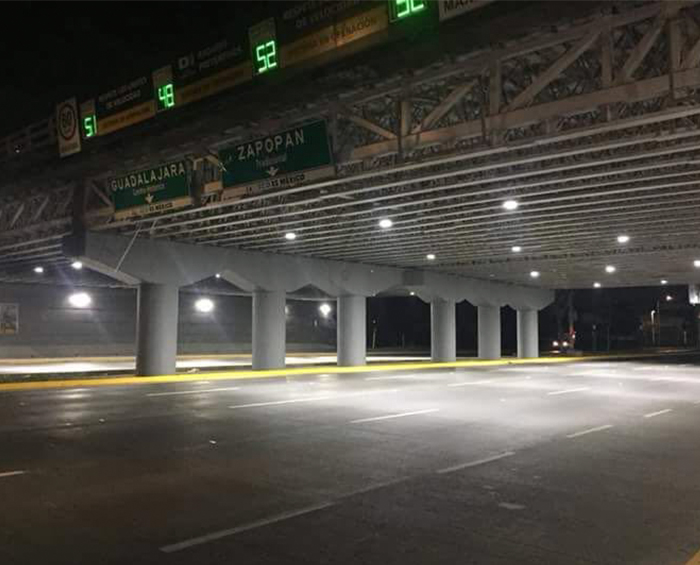

APPLICATIONS
