High Power 840W LED Flood Light
Main Advantages:
1. LUMILEDS LUXEON® 3030 leds.
2. Inventronics drivers with 0-10V dimming features.
3. Five years warranty.
4. High power range: 280W, 560W, 840W.
5. 15degree, 30 degree, 45 degree and 60 degree available.
6. Far projection distance.
7. Lifespan: more than 100, 000 hours.

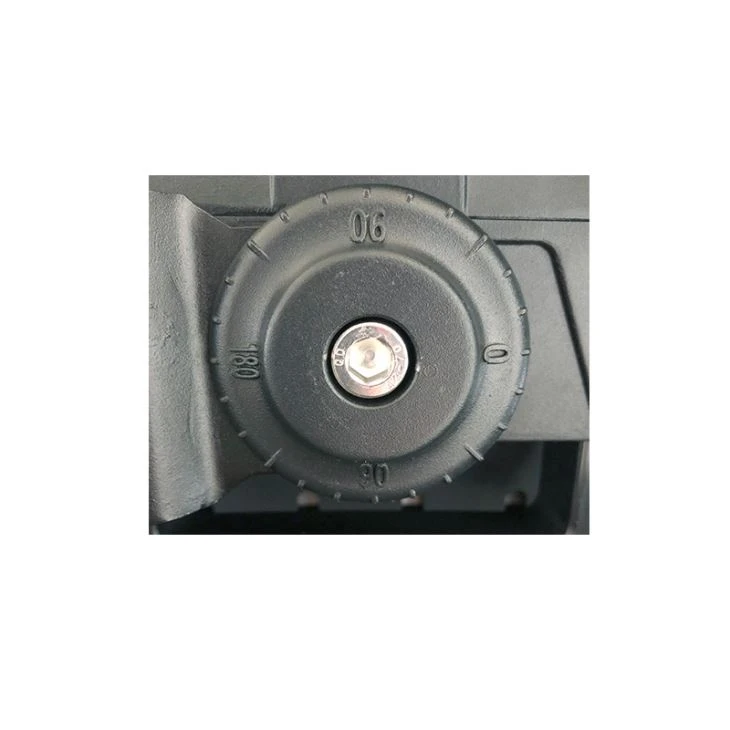

8. Whole fxture 0-360degree adjustable; Single module 0-90 degree adjustable;
9. Wide Application: stadium, golf course, square, training ground, sports ground etc.
10. IP66 & IK10 Rated.
| Specifications for High Power 840W LED Flood Light | |
| Model | ZGSM-TGD840M |
| LED Brand | LUXEON® 3030 |
| Driver Brand | INVENTRONICS EUC Series |
| Norminal Wattage | 840W |
| Input Voltage | 100-240/277VAC, 50/60Hz |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | >150lm/w |
| Lamp Rated Lumen output | 126000 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | Ra>70 |
| Color Temperature | 3000K, 4000K, 5000K or 5700K |
| Photometric Type | 15degree, 30degree, 45degree, 60 degrees |
| Optimal Operating Temperature | 25℃ |
| Storage Temperatures | ‘-40℃~+70℃ |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100,000 hours -L70, @25 ºC (77 ºF) |
| Body and Shell Materials | Dia Casting Aluminium, Tempered Glass Cover |
| IP Rating | IP66 IK10 |
| Certification | CE,ROHS |
| Optional Function | 1-10V DC Dimming |
| Warranty | 5 years |
| Packing Details | |
| Fixture Dimension | 687 x 836 x 222 mm |
| Fixture Weight | 43.00 |
| Packing Dimension | 770 x 990 x 235 mm |
| Packing Weight | 50.00kgs |
ZGSM has passed ISO9001 international quality management system certificates,ISO14001 internatioonal environmental management system certificates and ISO50001 internatioonal energy management system certificates. All of our products have CE, ROHS, most have passed CB,ENEC,UL,DLC,LM79,SAA, FCC certification and test report.
Our D&R center is cooperarating with many research institutes at domesestic and abroad to develop the projects to provide customers with high-efficient, energy-saving, eco-friendly products and technical services. At present, our products have been exported to more than 80 countries and regions. ZGSM owns distribution network and after-sales service in 30 provincial capital and listed in China. We also have partucipated many important constructive projects over the world, and gained high praise from our customers.
Contact Details
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 3-7 years warranty to our products
