ZGSM series-K UFO LED High Bay Light with the power from 60W to 240W;
Advantages
a. System lumen efficacy up to 125 lm/w;
b. Philips Lumileds Luxeon 3030 2D chips;
c. Meanwell HLG series Driver;
d. 100,000 hours under L70 standard, LM80 & TM21;
e. Wide Beam angle with 110 degrees.
f. Guaranteed 5 years warranty;
g. CE, ROHS listed;
h. IP65 IK10 Rated;
Application
Workshop, warehouse, Gas station, Area lighting, Parking garage, Parking lot, Production shop, Aisle, ball park, stadium, football field, basket ball field
Description
The K series UFO high bay light use aluminum alloy Die-casting and stretch housing which have better heat transfer. All of the screws on K series UFO high bay fixture are stainless steel to resistant to corrosion.
The high transparency glass be used in K series UFO high bay to improve high system efficiency and effective protect the LEDs without any broken.
The K series UFO high bay light have excellent heat dissipation because it’s heat sink direct exposed to the air.
Through use the High efficiency Philips Luxeon 3030 chips, the system efficiency of K series UFO high bay light can up to 125lm/w.
Datasheet
Product | ZGSM-HB09-100S | ZGSM-HB09-150S | ZGSM-HB09-150S | ZGSM-HB09-200M |
Nominal Wattage | 100w | 150w | 150w | 200w |
Number of LEDs | 120 | 168 | 592（2835) | 248 |
Input Voltage | AC100-277V | AC100-277V | AC100-277V | AC100-277V |
Dimming | 0-10v,PWM | 0-10v,PWM | 0-10v,PWM | 0-10v,PWM |
Operating Temperature | -40~+50 | -40~+50 | -40~+50 | -40~+50 |
Power Factor | >0.95 | >0.95 | >0.95 | >0.95 |
THD | <20% | <20% | <20% | <20% |
Lumens output | 14500lm | 21000lm | 28500lm | 29000lm |
Luminaire efficacy | 145lm/w | 140lm/w | 190lm/w | 145lm/w |
CRI | >70 | >70 | >70 | >70 |
CCT | 3000-5700K | 3000-5700K | 3000-5700K | 3000-5700K |
Rating | IP65 IK10 | IP65 IK10 | IP65 IK10 | IP65 IK10 |
Lifetime | >75,000h | >75,000h | >75,000h | >75,000h |
Case studies

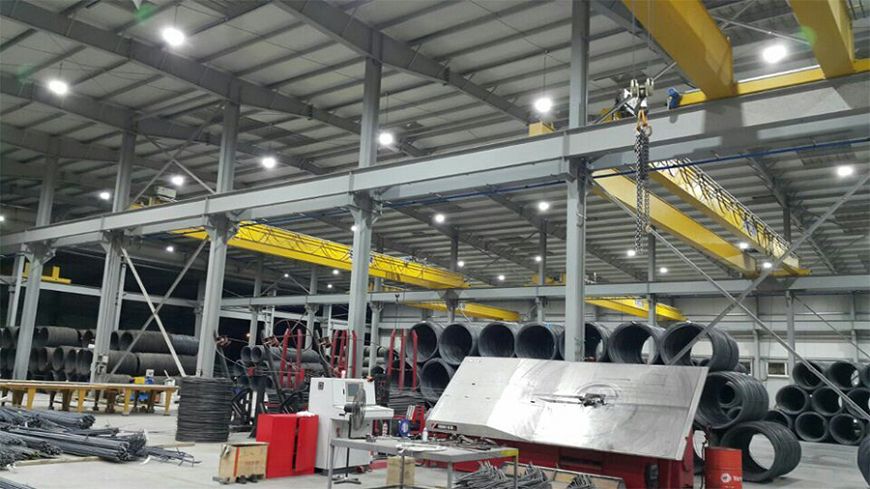

120pcs 150W K Series UFO High Bay Light with Inventronics driver 100‐240VAC, and Philips Lumileds LUXEON 3030 led 5700K 110degree
