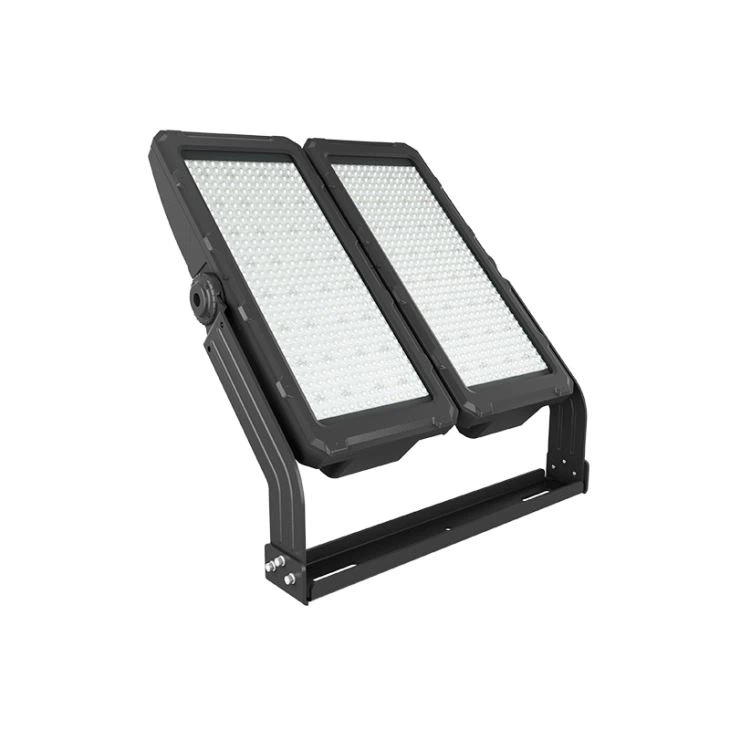

560W Staduim Led Floodlight

560W Staduim Led Floodlight
Details:
Major advantages of our M Series LED projector light:  The advantages : 1.  LUMILEDS 3030 leds. 2. Inventronics drivers . 3. 5 years warranty. 4. IP66 IK10. 5. 15/30/45 /60 degree available. 6. Lifespan: more than 100, 000 hours. 7.The whole fixture can be 0-360º adjustable, and the single module can be 0-90º adjustable 8. Wide Application: stadium, golf course, square, training ground, sports ground etc.
Send Inquiry
Description
Send Inquiry

2-2


Nominal Power 280W 560W 840W
Model ZGSM-TGD280M ZGSM-TGD560M ZGSM-TGD840M
LED Brand & Qty. Lumileds 3030     448pcs Lumileds 3030    896pcs Lumileds 3030    1334pcs
Lumen Output 42000 lm 84000 lm 126000 lm
Input Voltage 100-240V /277V AC   50 /60Hz
Driver Brand Inventronics Driver
Beam angle 15°, 30°,  45°,  60º
Rating IP66, IK10
CCT 3000K, 4000K, 5000K,  5700K
CRI > 70
Power Factor > 0.95
Power Efficiency > 90%
Lifetime(hrs) >100,000(L70)
Material Die-casting aluminum, Toughened glass and  PC
Housing Color Black
Installation Whole fixture 0~360º adjustable; Single module 0~90º adjustable
Working -40 ºC ~ +50 ºC, 10%~90%RH
 Environment
Storage Temperature -40 ºC ~ +50 ºC
Fixture 687*320*222mm, 17kg 687*578*222mm, 30kg 687*836*222mm, 43kg
Packing 770*385*235mm, 20kg 770*640*235mm, 35.5kg 770*900*235mm, 50kg
