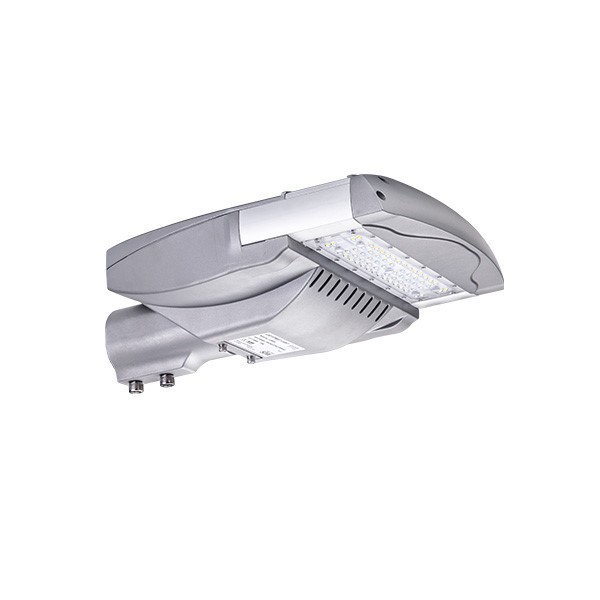

Multi-purpose 240W LED street Light
Product Description
Features:
1. Philips LUMILEDS 3030 2D
2. Inventronics or Meanwell Driver with wide voltage: 100-240V /277V AC
3. Each module with 60-63 pcs LED chips
4. High luminous efficiency: 130LM/W
| Specifications | |
| Model | ZGSM-LD240H5 |
| LED Brand | LUMILED 3030 |
| Driver Brand | Meanwell / Inventronics |
| Norminal Wattage | 240W |
| LED Module Quantity | 5 modules |
| Input Voltage | 100-240/277VAC/DC24V |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | >130 lm /w |
| Lamp Rated Lumen output | 31200 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | Ra>70 |
| Color Temperature | 3000, 4000, 5000 or 5700K |
| Photometric Type | Type I Medium;Type II Medium;Type III Medium,TypeV Short |
| Optimal Operating Temperature | 25℃ |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 75000 hours -L70, @25 ºC (77 ºF) |
| Body and Shell Materials | Anodized Aluminum |
| IP Rating | IP66 with test report |
| IK Rating | IK10 with test report |
| Certification | CE, ROHS, IOS9001, ISO14001, LM80,ENEC,CB |
| Optional Function | 1-10V DC or PWM Signal or Resistance Dimming |
| Timer/Photocell Control | |
| Warranty | 7 years |
| Packing Details | |
| Fixture Dimension | 723 x316 x136 mm |
| Fixture Weight | 9kg |
| Packing Dimension | 780x370 x200 mm |
| Packing Weight | 10.6 kg |
FAQ:
1, Is your price term FOB? Which port is near from your factory?
<100pcs Based on EXW, >100pcs FOB terms(Shanghai or Ningbo Port) .
2, Do you have exclusive agency?
Yes, we have.
3, Do you accept payment by L/C?
Yes, we accept.
4, Does your product has 10-years warranty?
Yes, our product can be 10 years warranty.
