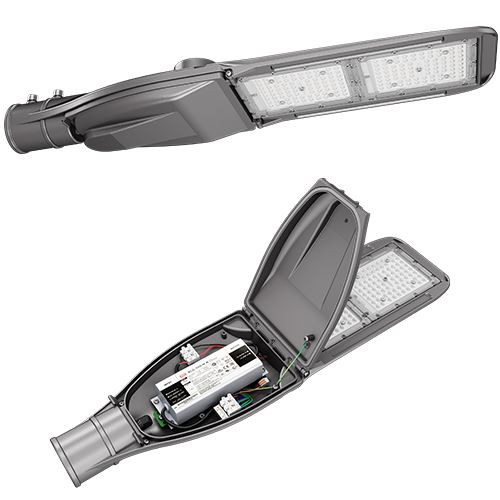

LED Street Light with IEC62471 IEC62788 Certificated
ZGSM Kmini2 series Certificated: TUV, ENEC, CB, CE (EMC and LVD), IK10 IP66, IEC62471, IEC62788, RoHS, LM79, LM80, Salt Spray Test, ISO9001, ISO14001, ISO50001.
| Specifications | |
| Model | ZGSM-LD100Kmini2 |
| LED Brand | LUMILEDS® LUXEON 3030 2D, 5050 |
| Driver Brand | Meanwell or Inventronics |
| Norminal Wattage | 100W |
| LED Quantity | 112 units /137 mA 3030chips; 44 units / 94 mA 5050 chips |
| Input Voltage | 100-240/277VAC/DC12/24V |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | >140 lm /W (3030chips); 157 lm /W (5050chips) |
| Lamp Rated Lumen output | 14600 lm (3030chips); 15000 lm (5050chips) |
| Color Rendering Index | Ra>70 |
| Color Temperature | 3000K, 4000K, 5000K or 5700K |
| Photometric Type | Type II;Type II BLS |
| Optimal Operating Temperature | 25℃ |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100000 hours -L70, @25 ºC (77 ºF) |
| Materials | Housing: Die-cast aluminum, Lens: PC |
| IP Rating | IP66 with test report |
| IK Rating | IK10 with test report |
| Certification | TUV, ENEC, CB, CE (EMC and LVD), IK10 IP66, IEC62471, IEC62788 |
| Optional Function | Dali, 1-10V DC or PWM Signal or Resistance Dimming, Timer, Photocell |
| Warranty | 5 years |
| Fixture Dimension | 717*178*99 mm |
| Fixture Weight | 3.84 kgs |
| Packing Dimension | 735*195*120 mm |
| Packing Weight | 4.42 kgs |
ZGSM Production Line Picture:
ZGSM Contacting info as below:
WhatApp & Mobile No.: + 86 152 6702 8962
WeChat: hanhan091111
Email: apple@zgsm-china.com
How to place your order:
1. Send us your order list (models/quantities/colors)
2. we will send you PROFORMA INVOICE (PI) with shipping cost and Payment information for your confirmation.
3. You arrange payment after you confirmed proforma invoice, we will arrange production after received your payment notice.
Specific delivery date depends on your specific needs, normally delivery in 1-3 days.
4.We will arrange delivery after your payment arrived and goods ready,and at the same time we will tell you goods tracking number so that you could know your goods condition by this number from courier site.
5.You will receive your order in about 3-5 days after goods ship out.
Hot Tags: led street light with iec62471 iec62788 certificated, manufacturers, suppliers, buy, cheap, price
