High Quality LED STREET LIGHT
| Overview |

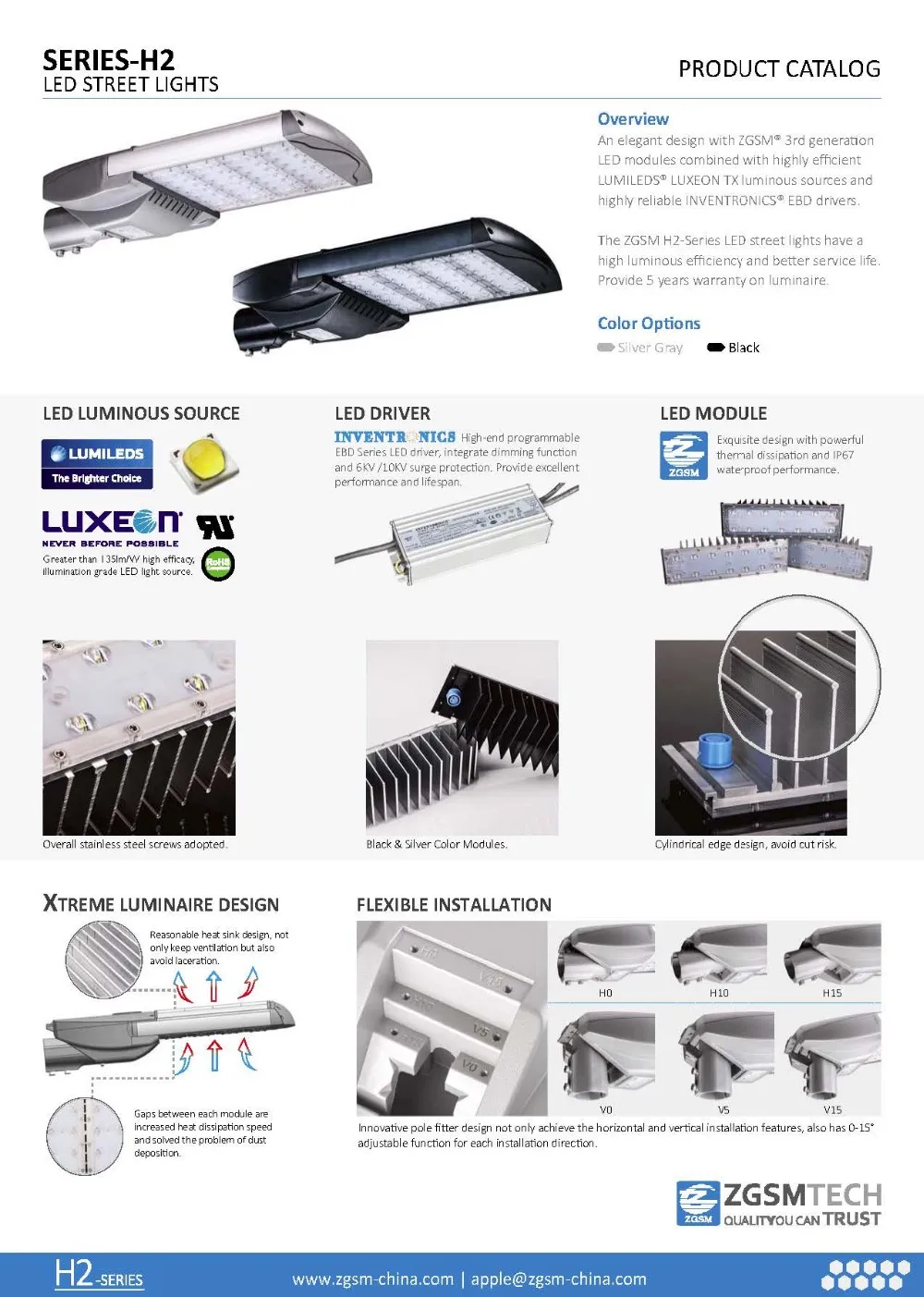

| An elegant new design with ZGSM 3rd-Generation module, more efficient LUMILEDS® LUXEON TX LED luminous source and high reliable MEAN WELL HLG Series LED driver make the ZGSM H series the most cost-effective LED street light available today. |
| Specification |
ModelZGSM-LD100HLED BrandLUMILEDS LUXEON® TX//LGDriver BrandMeanwell HLG seriesNorminal Wattage230WLED Module Quantity7 modulesInput Voltage100-240/277VACPower Efficiency>90%Power Factor>0.95Lamp Rated Luminous Efficiency>110lm/wLamp Rated Lumen output25300 lm (Lumen tolerance +/- 5%)Color Rendering IndexRa>70Color Temperature3000K,4000K,5000K,5700KPhotometric TypeType I Medium;Type II Medium;Type III Medium,TypeV,ShortOptimal Operating Temperature25°Storage Temperatures-40°C~50°CWorking EnvironmentBetween-40°C~+50°C, 10%~90%RHTotal Harmonic Distortion< 10%Lumen Maintenance> 100000 hours -L70, @25 ºC (77 ºF)Wind IndexForce 12Body and Shell MaterialsAnodized AluminumIP RatingIP66 with test reportIK RatingIK10 with test reportCertificationCE,ROHS,GS,CB,UL,cUL,DLC,LM-79,SAAOptional Function1-10V DC or PWM Signal or Resistance DimmingTimer/Photocell ControlWarranty5 years Packing DetailsFixture Dimension869 x316 x136 mmFixture Weight10.8 kg /23.8 lbsPacking Dimension930 x370 x200 mmPacking Weight12.6 kg /27.8 lbs
|
