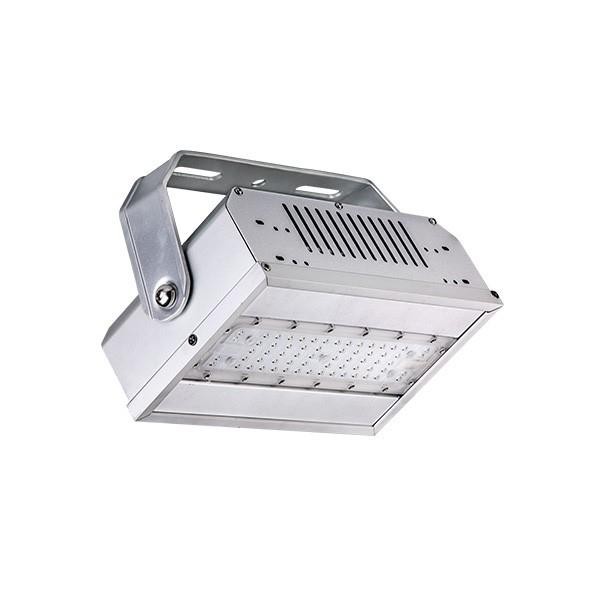

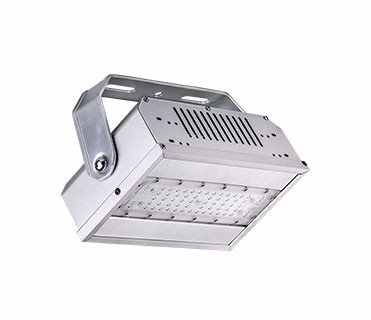

IP66 IK10 40w Led Tunnel Light
Key Features
● Wide power range: 40W~240W.
● Special circuit design, single LED’s damage won't affect others' normal work.
● Modular design for easy installation, replacement and maintenance.
● High Lumen output up to 165lm/ w with high quality LED chips.
● Variety applications with different mounting Accessories.
● Multiple lighting control options are available, e.g. DALI, 1-10V.
● Designed to last at least 100, 000 hours at L70.
● Multiple lighting distributions are available.
Model: ZGSM-SDD40H4 | |
Power | 40w |
Input voltage | 90-305VAC |
Power Factor | >0.95 |
CRI | >70 |
Rating | IP66 IK10 |
Efficiency | up to 165lm/W |
Lumens | 6600LM |
Lifetime | 100,000hours |

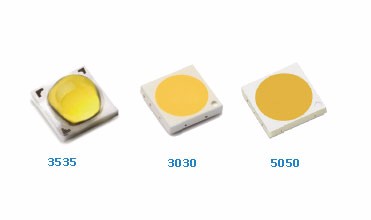

High Efficacy LED Source
ZGSM H series LED Tunnel Light are using Lumileds Luminous source, providing excellent lumen output, long-lasting stability and splendid sight. The efficiency of 5050 chips is more than 185 lm/w.
High-end LED Driver
High-end Mean Well HLG Series Flicker free LED driver Optimal stability performance and lifespan.
Flexible Modules Design
Modular structure making the lamp more easier and faster to be designed ,easy to do replacement and maintaining.A variety of combinations can multiply increase the brightness and illumination.

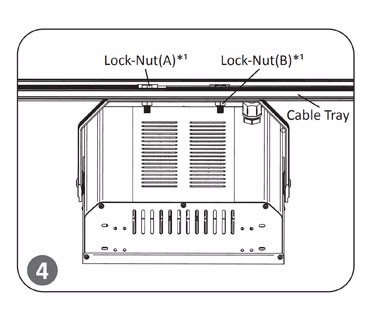

Variety of installation
With short bracket, it can be used for high bay; with long bracket, it can be used for flood light.
Variety of Beam Angle
The H series tunnel light have 6 types light distributions for optional, 60,90,typeI,II,III.
Model | ZGSM-SDD40H4 | ZGSM-SDD80H4 | ZGSM-SDD120H4 | ZGSM-SDD160H4 |
Power | 40w | 80w | 120w | 160w |
Lumen | 5200-6600LM | 10400-13200LM | 15600-19800LM | 20800-26400LM |
Warranty | 7 YEARS | 7 YEARS | 7 YEARS | 7 YEARS |
1. May I have a sample?
A: Sure, the sample can be tested by your side
2. Normal production leadtime?
A: Samples is about 2-3 days, bulk is about 1-2 weeks.
3: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.1%. Secondly, during the warranty period, we will repair or replace defected products.
