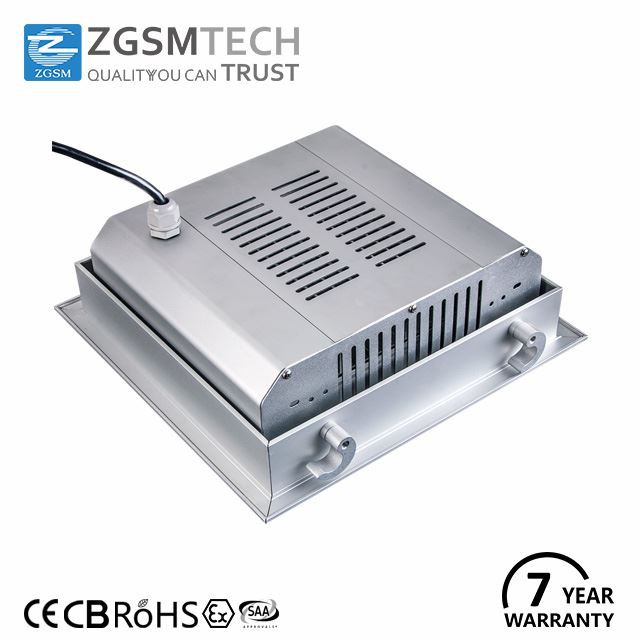

Lumileds 40W LED indoor Canopy Light
Specification
| Model | ZGSM-QD40H4 |
| LED Brand | Lumileds 3030 |
| Driver Brand | Meanwell/ Inventronics |
| Norminal Wattage | 40W |
| LED Module Quantity | 1 modules |
| Input Voltage | 100-240/277VAC |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | >140 lm/w |
| Lamp Rated Lumen output | 5600 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | Ra>70 |
| Color Temperature | 3000K, 4000K, 5000K or 5700K |
| Photometric Type | 60,90,110 degrees |
| Optimal Operating Temperature | 25ºC |
| Storage Temperatures | '-40ºC~+70ºC |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 75,000 hours -L70, @25 ºC (77 ºF) |
| Body and Shell Materials | Anodized Aluminum |
| IP Rating | IP66 with test report |
| IK Rating | IK10 with test report |
| Certification | CE, ROHS, IOS9001, ISO14001, LM80 |
| Optional Function | 1-10V DC or PWM Signal or Resistance Dimming |
| Timer/Photocell Control | |
| Warranty | 7 years |
| Packing Details | |
| Fixture Dimension | 231 x316 x120 mm |
| Fixture Weight | 2.4 kg |
| Packing Dimension | 285 x370 x200 mm |
| Packing Weight | 3.1 kg |
What can you get from us?
Excellent products (unique design, advance printing machine,strict quality control ) Factory direct sale (favorable and competitive price) Great service(OEM,ODM, after-sales services, fast delivery) Professional business consultation.
Q: I don't see my designed dimensions/packaging/delivery etc. Can you make a special order for us?
A: Sure. We're truly customized. You're free to tell us whatever you want.
Double insulated, Class II
Either Dialux or Dialux Evo are available for simulation.
enter the installation path
Offer IES files
Offer IDT files
Photometric Test Report
Extendable aluminum housing
heat loss
Direct Mount Canopy Light comes standard with PC lens.
0 (1) -10V, PWM, resistance, pulse are all available.
There are microwave and infrared sensors.
