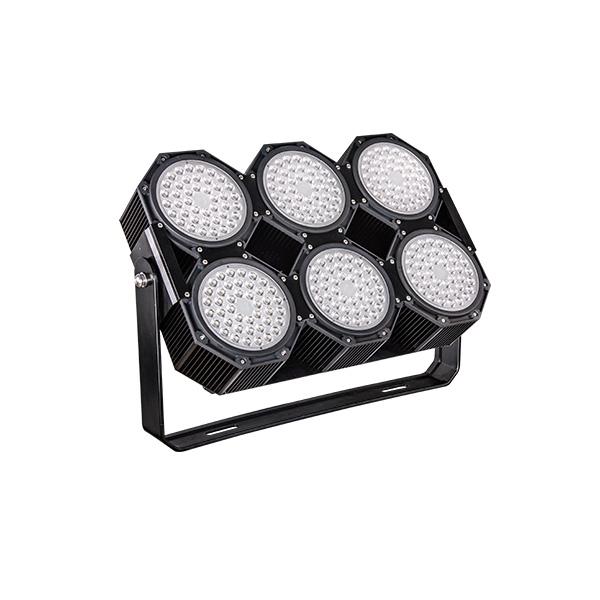

560watt High Lumen LED Sport Lights
Product specification
| Specifications | |
| Model | ZGSM-TGD560J |
| LED Brand | LUXEON® TX/LG |
| Driver Brand | Meanwell/ Inventronics |
| Norminal Wattage | 560W |
| Input Voltage | 100-240/277VAC |
| Power Efficiency | >90% |
| Power Factor | >0.9 |
| Lamp Rated Luminous Efficiency | >112lm/w |
| Lamp Rated Lumen output | 62720 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | Ra>70 |
| Color Temperature | 3000 4000 5000 or 5700K |
| Photometric Type | 110 degrees |
| Optimal Operating Temperature | 25ºC |
| Storage Temperatures | -40ºC~+70ºC |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100,000 hours -L70, @25 ºC (77 ºF) |
| Body and Shell Materials | Anodized Aluminum |
| IP Rating | IP66 with test report |
| IK Rating | IK10 with test report |
| Certification | CE,ROHS,GS,CB |
| Optional Function | 1-10V DC or PWM Signal or Resistance Dimming |
| Timer | |
| Warranty | 7 years |
Q. How to proceed an order for led light?
A: Firstly let us know your requirements . Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
The driver has a universal voltage input of 277 volts to 480 volts
Manufacturer provides 24 hour response time for all warranty issues
Use multi-zone targeting strategies
Ideal for stadiums, airports, shipping ports or any high tower lighting venue
Corrosion resistant polyester powder coating finish
Long life and better performance
High resistance aluminum structure
UV stabilized polyester powder paint
The minimum IRC 70, 80 and 90 are optional
Beam angle optional 15 30 45 60 °
Over 100,000 hours of lifespan
